NEC PA903X Projector &
NEC NP43ZL Projector Lens
NEC PA903X
- 9000 ANSI Lumens
- XGA 1024*768 Native Resolution
- 10000:1 Contrast Ratio
- 3000 hour lamp life (typical)
- Lens Shift function
- 10.2kg (22.5lb.)
- 3 years pan-European loan support warranty
- RETIRED
NEC PA903X & NEC NP43ZL
NEC NP43ZL
Suitable For
NEC NP43ZL Lens Only
£743 (£891.60 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
5.98m | 11.86m | 278.64 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.38 | 0.62 | 1.50 | 2.96 | 0.19 sq.m. | 4459.35 |
| 1.00 | 0.75 | 1.25 | 2.99 | 5.93 | 0.75 sq.m. | 1114.84 |
| 1.50 | 1.12 | 1.88 | 4.49 | 8.89 | 1.69 sq.m. | 495.48 |
| 2.00 | 1.50 | 2.50 | 5.98 | 11.86 | 3.00 sq.m. | 278.71 |
| 2.50 | 1.88 | 3.12 | 7.48 | 14.82 | 4.69 sq.m. | 178.37 |
| 3.00 | 2.25 | 3.75 | 8.97 | 17.79 | 6.75 sq.m. | 123.87 |
| 4.00 | 3.00 | 5.00 | 11.96 | 23.72 | 12.00 sq.m. | 69.68 |
| 5.00 | 3.75 | 6.25 | 14.95 | 29.65 | 18.75 sq.m. | 44.59 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

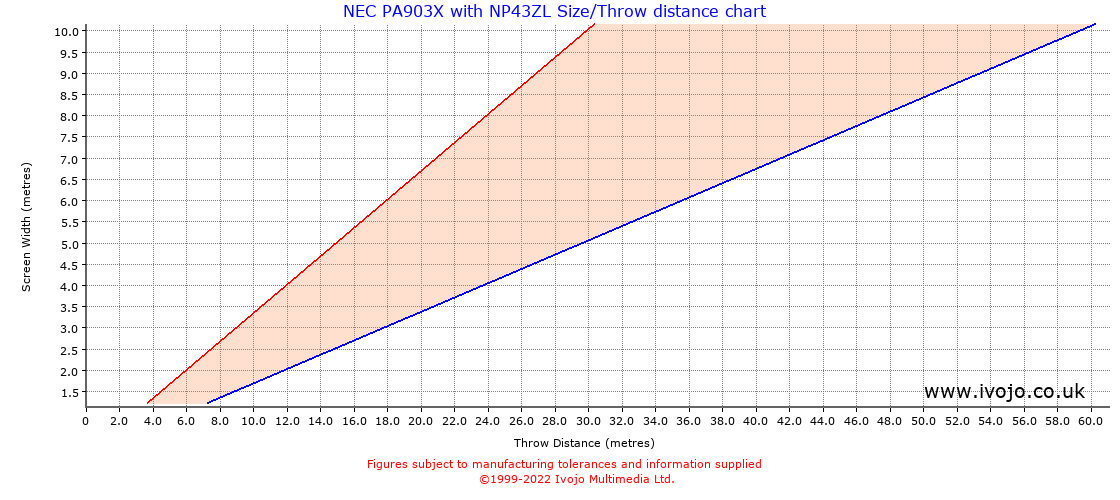

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.17 | 0.33 |
| 2 | 0.34 | 0.67 |
| 3 | 0.51 | 1.00 |
| 4 | 0.67 | 1.34 |
| 5 | 0.84 | 1.67 |
| 6 | 1.01 | 2.01 |
| 7 | 1.18 | 2.34 |
| 8 | 1.35 | 2.68 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
