NEC PA804UL WH Projector &
NEC NP43ZL Projector Lens

NEC PA804UL WH projector lens image

NEC PA804UL WH

  • 8200 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 24.1kg (53.1lb.)
  • 3 year pan European warranty
  • NEC PA804UL WH
NEC PA804UL WH & NEC NP43ZL
£6162 (£7394.40 inc. VAT)
Availability: 7-10 Days
NEC NP43ZL projector lens image

NEC NP43ZL
Suitable For

NEC NP43ZL Lens Only
£756 (£907.20 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
5.98m 11.86m 304.72

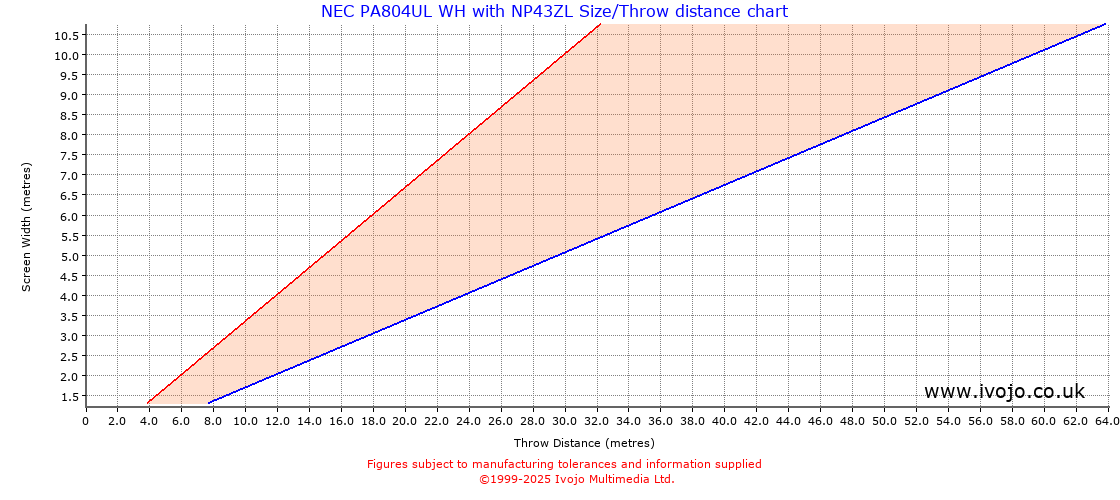

Throw Chard for NEC PA804UL WH fitted with NEC NP43ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.50 2.96 0.14 sq.m. 5417.28
1.00 0.56 1.15 2.99 5.93 0.56 sq.m. 1354.32
1.50 0.84 1.72 4.49 8.89 1.27 sq.m. 601.92
2.00 1.12 2.29 5.98 11.86 2.25 sq.m. 338.58
2.50 1.41 2.87 7.48 14.82 3.52 sq.m. 216.69
3.00 1.69 3.44 8.97 17.79 5.06 sq.m. 150.48
4.00 2.25 4.59 11.96 23.72 9.00 sq.m. 84.64
5.00 2.81 5.74 14.95 29.65 14.06 sq.m. 54.17

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.17 0.33
2 0.34 0.67
3 0.51 1.00
4 0.67 1.34
5 0.84 1.67
6 1.01 2.01
7 1.18 2.34
8 1.35 2.68

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
