NEC PA1004UL BK Projector &
NEC NP43ZL Projector Lens
NEC PA1004UL BK
- 10000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 3000000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 24.4kg (53.8lb.)
- 3 year pan European warranty
- NEC PA1004UL BK
NEC PA1004UL BK & NEC NP43ZL
£8900 (£10680.00 inc. VAT)
Availability: 7-10 Days
Availability: 7-10 Days
NEC NP43ZL Lens Only
£756 (£907.20 inc. VAT)
Availability: In stock
Availability: In stock
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
5.98m | 11.86m | 371.61 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 1.50 | 2.96 | 0.14 sq.m. | 6606.44 |
| 1.00 | 0.56 | 1.15 | 2.99 | 5.93 | 0.56 sq.m. | 1651.61 |
| 1.50 | 0.84 | 1.72 | 4.49 | 8.89 | 1.27 sq.m. | 734.05 |
| 2.00 | 1.12 | 2.29 | 5.98 | 11.86 | 2.25 sq.m. | 412.90 |
| 2.50 | 1.41 | 2.87 | 7.48 | 14.82 | 3.52 sq.m. | 264.26 |
| 3.00 | 1.69 | 3.44 | 8.97 | 17.79 | 5.06 sq.m. | 183.51 |
| 4.00 | 2.25 | 4.59 | 11.96 | 23.72 | 9.00 sq.m. | 103.23 |
| 5.00 | 2.81 | 5.74 | 14.95 | 29.65 | 14.06 sq.m. | 66.06 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

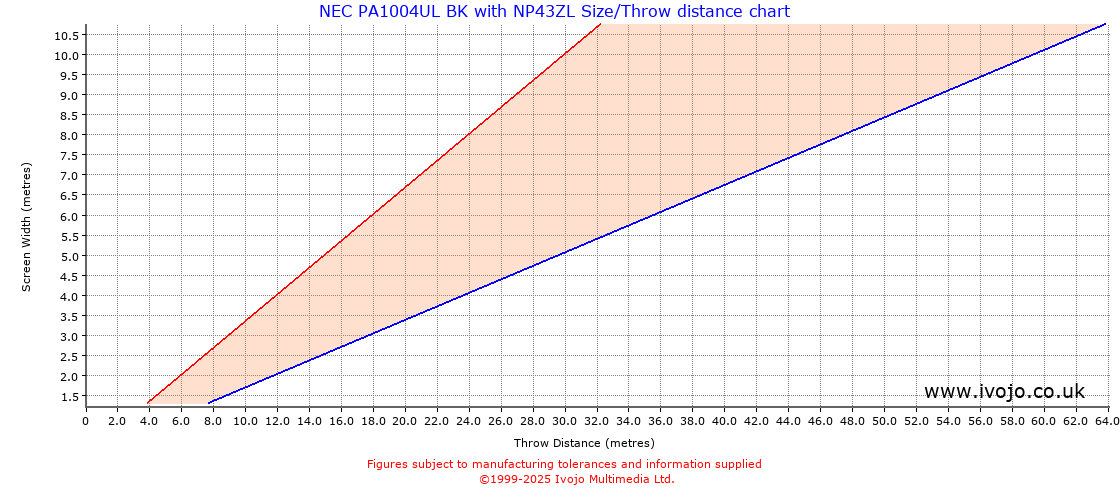

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.17 | 0.33 |
| 2 | 0.34 | 0.67 |
| 3 | 0.51 | 1.00 |
| 4 | 0.67 | 1.34 |
| 5 | 0.84 | 1.67 |
| 6 | 1.01 | 2.01 |
| 7 | 1.18 | 2.34 |
| 8 | 1.35 | 2.68 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
