NEC PA903X Projector &
NEC NP41ZL Projector Lens
NEC PA903X
- 9000 ANSI Lumens
- XGA 1024*768 Native Resolution
- 10000:1 Contrast Ratio
- 3000 hour lamp life (typical)
- Lens Shift function
- 10.2kg (22.5lb.)
- 3 years pan-European loan support warranty
- RETIRED
NEC PA903X & NEC NP41ZL
NEC NP41ZL Lens Only
£393 (£471.60 inc. VAT)
Availability: Please Call
Availability: Please Call
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
2.60m | 6.04m | 278.64 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.38 | 0.62 | 0.65 | 1.51 | 0.19 sq.m. | 4459.35 |
| 1.00 | 0.75 | 1.25 | 1.30 | 3.02 | 0.75 sq.m. | 1114.84 |
| 1.50 | 1.12 | 1.88 | 1.95 | 4.53 | 1.69 sq.m. | 495.48 |
| 2.00 | 1.50 | 2.50 | 2.60 | 6.04 | 3.00 sq.m. | 278.71 |
| 2.50 | 1.88 | 3.12 | 3.25 | 7.55 | 4.69 sq.m. | 178.37 |
| 3.00 | 2.25 | 3.75 | 3.90 | 9.06 | 6.75 sq.m. | 123.87 |
| 4.00 | 3.00 | 5.00 | 5.20 | 12.08 | 12.00 sq.m. | 69.68 |
| 5.00 | 3.75 | 6.25 | 6.50 | 15.10 | 18.75 sq.m. | 44.59 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

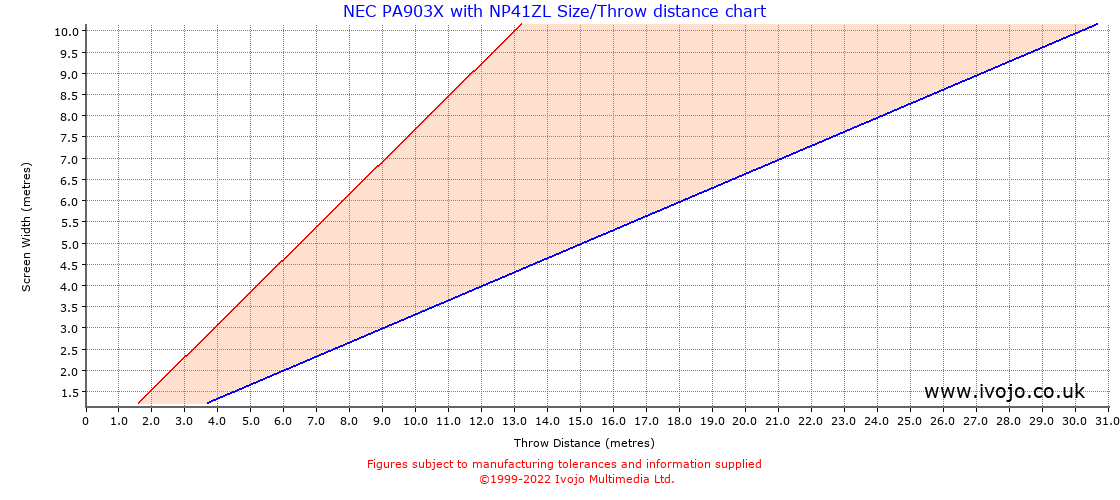

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.33 | 0.77 |
| 2 | 0.66 | 1.54 |
| 3 | 0.99 | 2.31 |
| 4 | 1.32 | 3.08 |
| 5 | 1.66 | 3.85 |
| 6 | 1.99 | 4.62 |
| 7 | 2.32 | 5.38 |
| 8 | 2.65 | 6.15 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
