NEC PA903X Projector &
NEC NP40ZL Projector Lens

NEC PA903X projector lens image

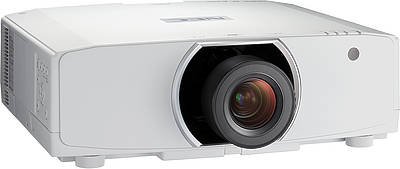

NEC PA903X

  • 9000 ANSI Lumens
  • XGA 1024*768 Native Resolution
  • 10000:1 Contrast Ratio
  • 3000 hour lamp life (typical)
  • Lens Shift function
  • 10.2kg (22.5lb.)
  • 3 years pan-European loan support warranty
  • RETIRED
NEC PA903X & NEC NP40ZL
NEC NP40ZL projector lens image

NEC NP40ZL
Suitable For

NEC NP40ZL Lens Only
£972 (£1166.40 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.58m 2.22m 278.64
images/throw-chart/large/nec/nec-pa903x-xp-40zl

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.38 0.62 0.40 0.56 0.19 sq.m. 4459.35
1.00 0.75 1.25 0.79 1.11 0.75 sq.m. 1114.84
1.50 1.12 1.88 1.19 1.67 1.69 sq.m. 495.48
2.00 1.50 2.50 1.58 2.22 3.00 sq.m. 278.71
2.50 1.88 3.12 1.98 2.78 4.69 sq.m. 178.37
3.00 2.25 3.75 2.37 3.33 6.75 sq.m. 123.87
4.00 3.00 5.00 3.16 4.44 12.00 sq.m. 69.68
5.00 3.75 6.25 3.95 5.55 18.75 sq.m. 44.59

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

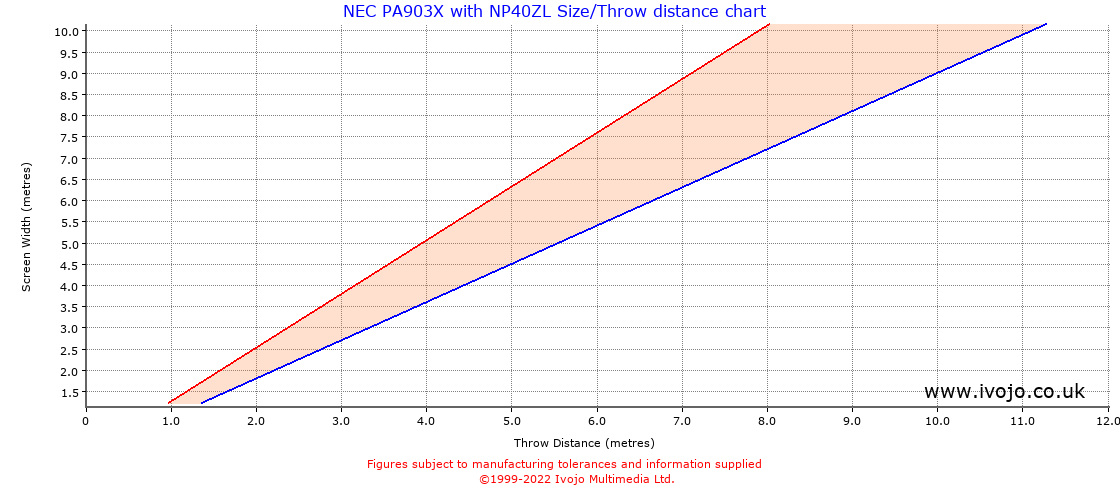

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.90 1.27
2 1.80 2.53
3 2.70 3.80
4 3.60 5.06
5 4.50 6.33
6 5.41 7.59
7 6.31 8.86
8 7.21 10.13

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
