NEC PA804UL WH Projector &
NEC NP40ZL Projector Lens

NEC PA804UL WH projector lens image

NEC PA804UL WH

  • 8200 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 3000000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 24.1kg (53.1lb.)
  • 3 year pan European warranty
  • NEC PA804UL WH
NEC PA804UL WH & NEC NP40ZL
£6327 (£7592.40 inc. VAT)
Availability: In Stock
NEC NP40ZL projector lens image

NEC NP40ZL
Suitable For

NEC NP40ZL Lens Only
£921 (£1105.20 inc. VAT)
Availability: In stock


Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.58m 2.22m 304.72

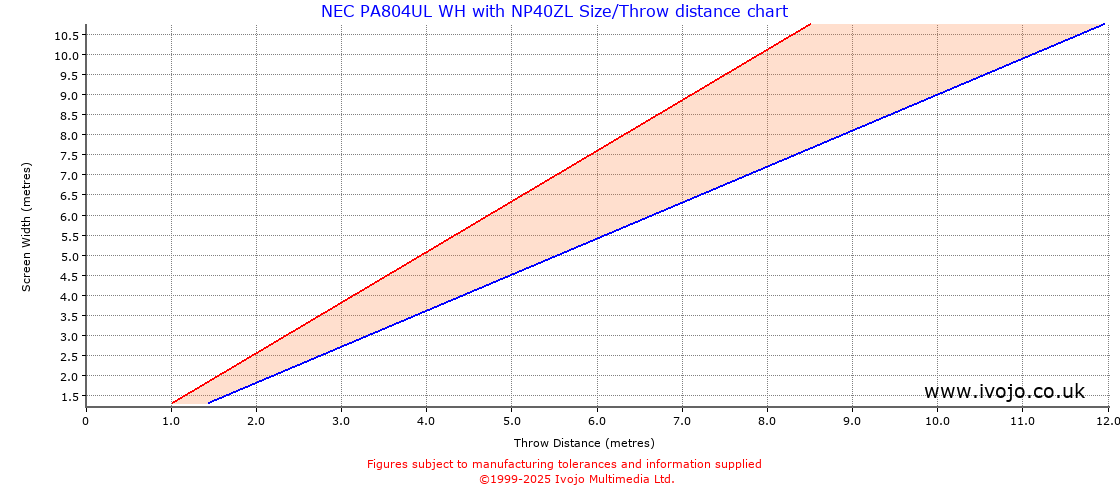

Throw Chard for NEC PA804UL WH fitted with NEC NP40ZL

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.40 0.56 0.14 sq.m. 5417.28
1.00 0.56 1.15 0.79 1.11 0.56 sq.m. 1354.32
1.50 0.84 1.72 1.19 1.67 1.27 sq.m. 601.92
2.00 1.12 2.29 1.58 2.22 2.25 sq.m. 338.58
2.50 1.41 2.87 1.98 2.78 3.52 sq.m. 216.69
3.00 1.69 3.44 2.37 3.33 5.06 sq.m. 150.48
4.00 2.25 4.59 3.16 4.44 9.00 sq.m. 84.64
5.00 2.81 5.74 3.95 5.55 14.06 sq.m. 54.17

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.90 1.27
2 1.80 2.53
3 2.70 3.80
4 3.60 5.06
5 4.50 6.33
6 5.41 7.59
7 6.31 8.86
8 7.21 10.13

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
