NEC PX803UL WH Projector &
NEC NP31ZL Projector Lens

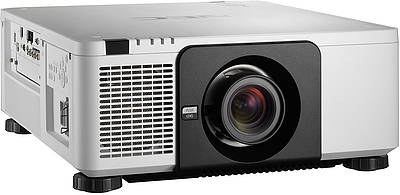

NEC PX803UL WH
- 8000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 10000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 28kg (61.7lb.)
- 3 year (First year Instacare) warranty
- NEC PX803UL WH
NEC PX803UL WH & NEC NP31ZL
NEC NP31ZL
Suitable For
NEC NP31ZL Lens Only
£2341 (£2809.20 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
1.50m | 1.86m | 297.29 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.38 | 0.47 | 0.14 sq.m. | 5285.15 |
| 1.00 | 0.56 | 1.15 | 0.75 | 0.93 | 0.56 sq.m. | 1321.29 |
| 1.50 | 0.84 | 1.72 | 1.12 | 1.40 | 1.27 sq.m. | 587.24 |
| 2.00 | 1.12 | 2.29 | 1.50 | 1.86 | 2.25 sq.m. | 330.32 |
| 2.50 | 1.41 | 2.87 | 1.88 | 2.33 | 3.52 sq.m. | 211.41 |
| 3.00 | 1.69 | 3.44 | 2.25 | 2.79 | 5.06 sq.m. | 146.81 |
| 4.00 | 2.25 | 4.59 | 3.00 | 3.72 | 9.00 sq.m. | 82.58 |
| 5.00 | 2.81 | 5.74 | 3.75 | 4.65 | 14.06 sq.m. | 52.85 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

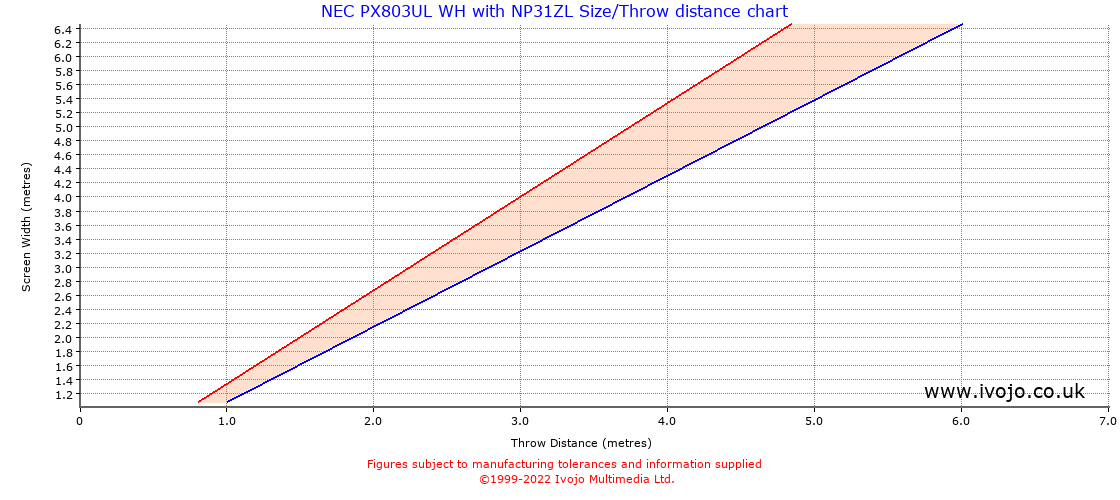

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 1.08 | 1.33 |
| 2 | 2.15 | 2.67 |
| 3 | 3.23 | 4.00 |
| 4 | 4.30 | 5.33 |
| 5 | 5.38 | 6.67 |
| 6 | 6.45 | 8.00 |
| 7 | 7.53 | 9.33 |
| 8 | 8.60 | 10.67 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
