NEC PX803UL WH Projector &
NEC NP19ZL Projector Lens
NEC PX803UL WH
- 8000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 10000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 28kg (61.7lb.)
- 3 year (First year Instacare) warranty
- NEC PX803UL WH
NEC PX803UL WH & NEC NP19ZL
NEC NP19ZL
Suitable For
NEC NP19ZL Lens Only
£2317 (£2780.40 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
4.44m | 7.34m | 297.29 |

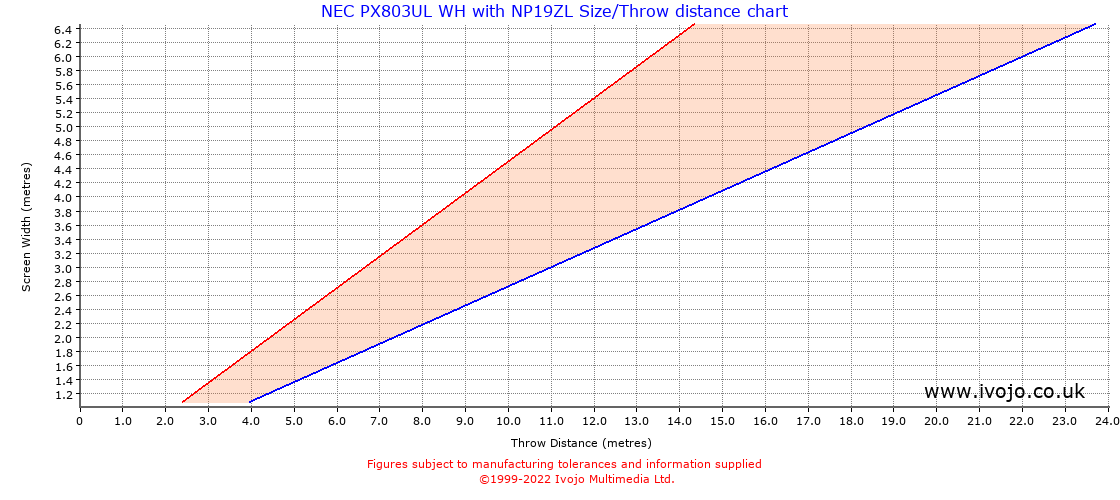

![Throw Chard for NEC PX803UL WH fitted with NEC NP19ZL](images/throw-chart/large/nec/nec-px803ul-wh-np19zl.jpg)
Screen Size Table (Figures in metres)
Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
0.50 | 0.28 | 0.57 | 1.11 | 1.83 | 0.14 sq.m. | 5285.15 |
1.00 | 0.56 | 1.15 | 2.22 | 3.67 | 0.56 sq.m. | 1321.29 |
1.50 | 0.84 | 1.72 | 3.33 | 5.50 | 1.27 sq.m. | 587.24 |
2.00 | 1.12 | 2.29 | 4.44 | 7.34 | 2.25 sq.m. | 330.32 |
2.50 | 1.41 | 2.87 | 5.55 | 9.18 | 3.52 sq.m. | 211.41 |
3.00 | 1.69 | 3.44 | 6.66 | 11.01 | 5.06 sq.m. | 146.81 |
4.00 | 2.25 | 4.59 | 8.88 | 14.68 | 9.00 sq.m. | 82.58 |
5.00 | 2.81 | 5.74 | 11.10 | 18.35 | 14.06 sq.m. | 52.85 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.
Throw Distance Table (Figures in metres)
Distance | Minimum Width | Maximum Width |
1 | 0.27 | 0.45 |
2 | 0.54 | 0.90 |
3 | 0.82 | 1.35 |
4 | 1.09 | 1.80 |
5 | 1.36 | 2.25 |
6 | 1.63 | 2.70 |
7 | 1.91 | 3.15 |
8 | 2.18 | 3.60 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
