NEC PV710UL BL Projector &
NEC NP14ZL Projector Lens
NEC PV710UL BL
- 7100 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 3000000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 11.2kg (24.7lb.)
- 3 year collect/repair/return warranty
- NEC PV710UL BL
NEC PV710UL BL & NEC NP14ZL
NEC NP14ZL
Suitable For
NEC NP14ZL Lens Only
No Longer Available
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
5.80m | 9.36m | 263.84 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 1.45 | 2.34 | 0.14 sq.m. | 4690.57 |
| 1.00 | 0.56 | 1.15 | 2.90 | 4.68 | 0.56 sq.m. | 1172.64 |
| 1.50 | 0.84 | 1.72 | 4.35 | 7.02 | 1.27 sq.m. | 521.17 |
| 2.00 | 1.12 | 2.29 | 5.80 | 9.36 | 2.25 sq.m. | 293.16 |
| 2.50 | 1.41 | 2.87 | 7.25 | 11.70 | 3.52 sq.m. | 187.62 |
| 3.00 | 1.69 | 3.44 | 8.70 | 14.04 | 5.06 sq.m. | 130.29 |
| 4.00 | 2.25 | 4.59 | 11.60 | 18.72 | 9.00 sq.m. | 73.29 |
| 5.00 | 2.81 | 5.74 | 14.50 | 23.40 | 14.06 sq.m. | 46.91 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

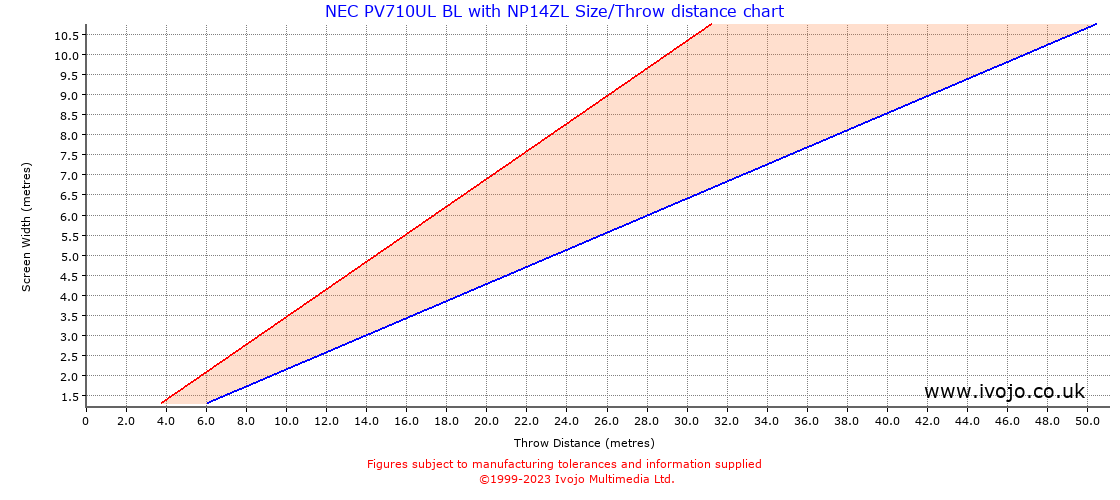

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.21 | 0.34 |
| 2 | 0.43 | 0.69 |
| 3 | 0.64 | 1.03 |
| 4 | 0.85 | 1.38 |
| 5 | 1.07 | 1.72 |
| 6 | 1.28 | 2.07 |
| 7 | 1.50 | 2.41 |
| 8 | 1.71 | 2.76 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
