NEC PA653U Projector &
NEC NP13ZL Projector Lens
NEC PA653U
- 6500 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 8000:1 Contrast Ratio
- 4000 hour lamp life (typical)
- Lens Shift function
- 10.2kg (22.5lb.)
- 3 year loan support warranty
- NEC PA653U
NEC PA653U & NEC NP13ZL
NEC NP13ZL Lens Only
£231 (£277.20 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
2.92m | 5.90m | 241.55 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.73 | 1.48 | 0.14 sq.m. | 4294.18 |
| 1.00 | 0.56 | 1.15 | 1.46 | 2.95 | 0.56 sq.m. | 1073.55 |
| 1.50 | 0.84 | 1.72 | 2.19 | 4.43 | 1.27 sq.m. | 477.13 |
| 2.00 | 1.12 | 2.29 | 2.92 | 5.90 | 2.25 sq.m. | 268.39 |
| 2.50 | 1.41 | 2.87 | 3.65 | 7.38 | 3.52 sq.m. | 171.77 |
| 3.00 | 1.69 | 3.44 | 4.38 | 8.85 | 5.06 sq.m. | 119.28 |
| 4.00 | 2.25 | 4.59 | 5.84 | 11.80 | 9.00 sq.m. | 67.10 |
| 5.00 | 2.81 | 5.74 | 7.30 | 14.75 | 14.06 sq.m. | 42.94 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

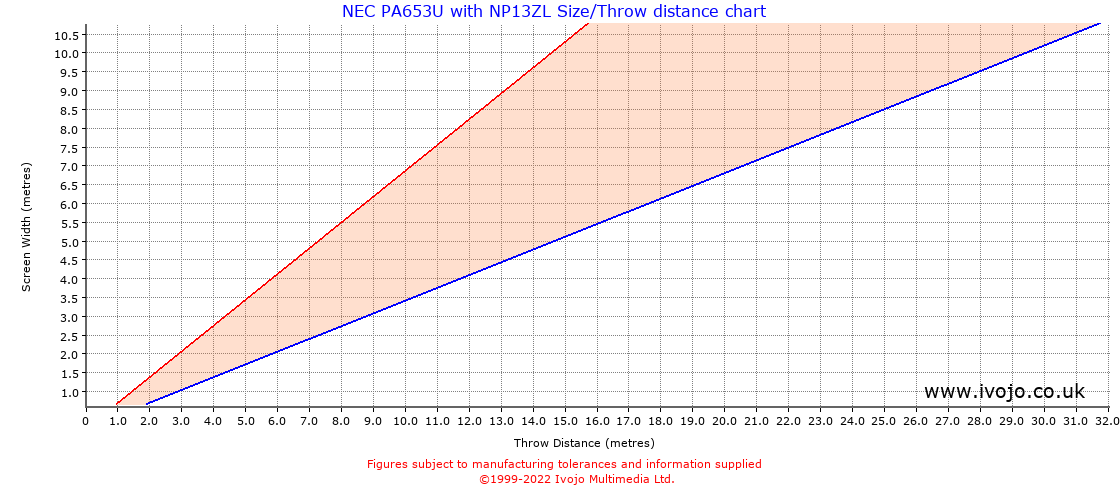

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.34 | 0.68 |
| 2 | 0.68 | 1.37 |
| 3 | 1.02 | 2.05 |
| 4 | 1.36 | 2.74 |
| 5 | 1.69 | 3.42 |
| 6 | 2.03 | 4.11 |
| 7 | 2.37 | 4.79 |
| 8 | 2.71 | 5.48 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
