NEC PA903X Projector &
NEC NP12ZL Projector Lens
NEC PA903X
- 9000 ANSI Lumens
- XGA 1024*768 Native Resolution
- 10000:1 Contrast Ratio
- 3000 hour lamp life (typical)
- Lens Shift function
- 10.2kg (22.5lb.)
- 3 years pan-European loan support warranty
- NEC PA903X
NEC PA903X & NEC NP12ZL
NEC NP12ZL Lens Only
£815 (£978.00 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
2.32m | 3.04m | 278.64 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.38 | 0.62 | 0.58 | 0.76 | 0.19 sq.m. | 4459.35 |
| 1.00 | 0.75 | 1.25 | 1.16 | 1.52 | 0.75 sq.m. | 1114.84 |
| 1.50 | 1.12 | 1.88 | 1.74 | 2.28 | 1.69 sq.m. | 495.48 |
| 2.00 | 1.50 | 2.50 | 2.32 | 3.04 | 3.00 sq.m. | 278.71 |
| 2.50 | 1.88 | 3.12 | 2.90 | 3.80 | 4.69 sq.m. | 178.37 |
| 3.00 | 2.25 | 3.75 | 3.48 | 4.56 | 6.75 sq.m. | 123.87 |
| 4.00 | 3.00 | 5.00 | 4.64 | 6.08 | 12.00 sq.m. | 69.68 |
| 5.00 | 3.75 | 6.25 | 5.80 | 7.60 | 18.75 sq.m. | 44.59 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

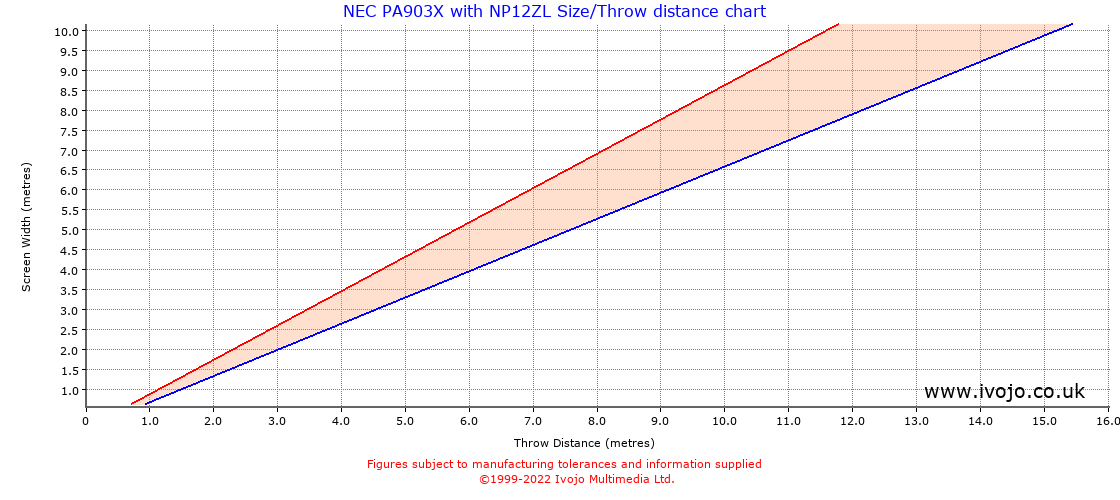

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.66 | 0.86 |
| 2 | 1.32 | 1.72 |
| 3 | 1.97 | 2.59 |
| 4 | 2.63 | 3.45 |
| 5 | 3.29 | 4.31 |
| 6 | 3.95 | 5.17 |
| 7 | 4.61 | 6.03 |
| 8 | 5.26 | 6.90 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
