NEC PA804UL BK Projector &
NEC NP12ZL Projector Lens
NEC PA804UL BK
- 8200 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 3000000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 24.1kg (53.1lb.)
- 3 year pan European warranty
- NEC PA804UL BK
NEC PA804UL BK & NEC NP12ZL
£6221 (£7465.20 inc. VAT)
Availability: 4-7 Days
Availability: 4-7 Days
NEC NP12ZL Lens Only
£815 (£978.00 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
2.32m | 3.04m | 304.72 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.58 | 0.76 | 0.14 sq.m. | 5417.28 |
| 1.00 | 0.56 | 1.15 | 1.16 | 1.52 | 0.56 sq.m. | 1354.32 |
| 1.50 | 0.84 | 1.72 | 1.74 | 2.28 | 1.27 sq.m. | 601.92 |
| 2.00 | 1.12 | 2.29 | 2.32 | 3.04 | 2.25 sq.m. | 338.58 |
| 2.50 | 1.41 | 2.87 | 2.90 | 3.80 | 3.52 sq.m. | 216.69 |
| 3.00 | 1.69 | 3.44 | 3.48 | 4.56 | 5.06 sq.m. | 150.48 |
| 4.00 | 2.25 | 4.59 | 4.64 | 6.08 | 9.00 sq.m. | 84.64 |
| 5.00 | 2.81 | 5.74 | 5.80 | 7.60 | 14.06 sq.m. | 54.17 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

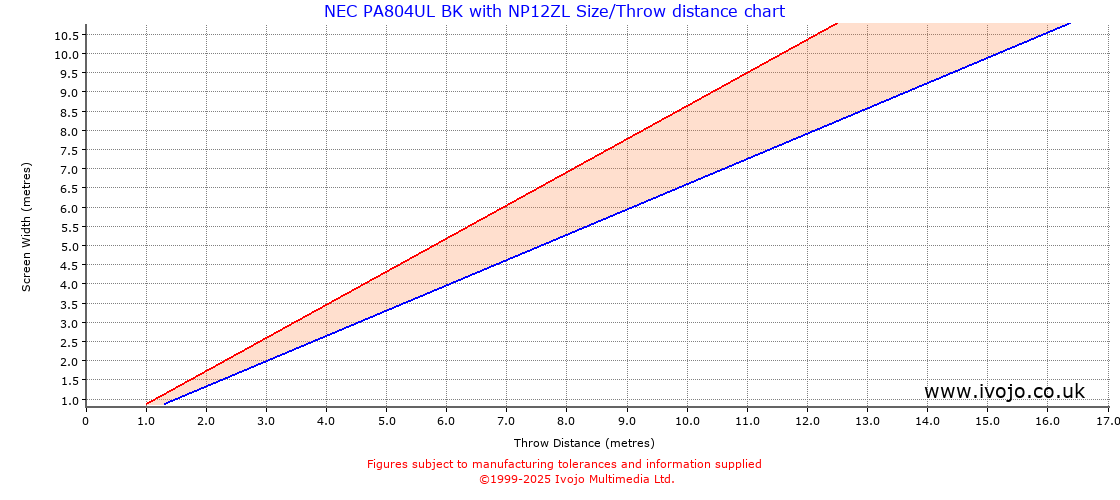

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.66 | 0.86 |
| 2 | 1.32 | 1.72 |
| 3 | 1.97 | 2.59 |
| 4 | 2.63 | 3.45 |
| 5 | 3.29 | 4.31 |
| 6 | 3.95 | 5.17 |
| 7 | 4.61 | 6.03 |
| 8 | 5.26 | 6.90 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
