Epson EB-PQ2213B Projector &
Epson ELPLX02WS Projector Lens

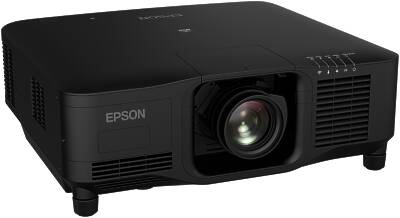

Epson EB-PQ2213B projector lens image

Epson EB-PQ2213B

  • 13000 ANSI Lumens
  • UHD 3840×2160 Native Resolution
  • 3000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 28.8kg (63.5lb.)
  • 3 Year RTB warranty
  • Epson EB-PQ2213B
Epson EB-PQ2213B & Epson ELPLX02WS
£24388 (£29265.60 inc. VAT)
Availability:
Epson ELPLX02WS projector lens image

Epson ELPLX02WS
Suitable For

Epson ELPLX02WS Lens Only
£9742 (£11690.40 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
0.68m 0.68m 536.84

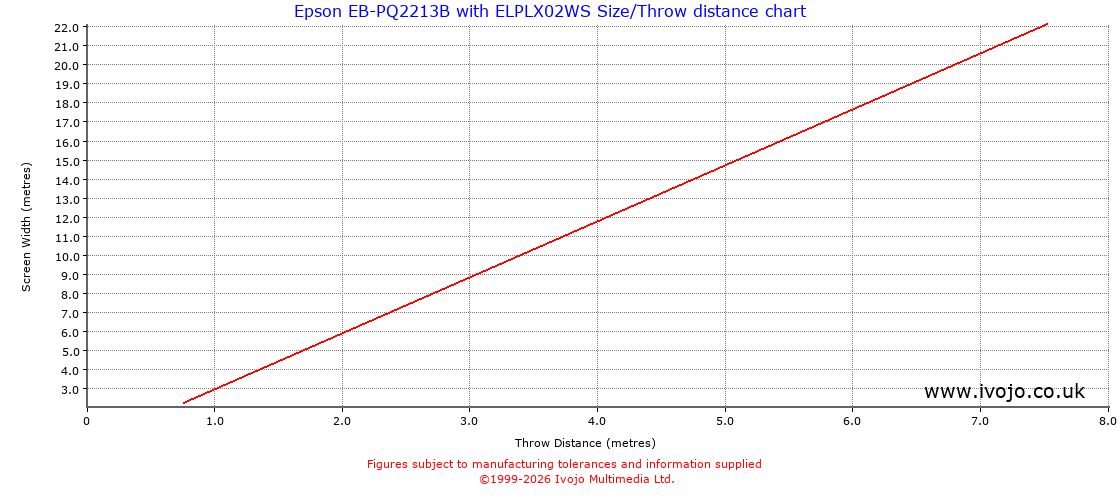

Throw Chard for Epson EB-PQ2213B fitted with Epson ELPLX02WS

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.17 0.17 0.14 sq.m. 8588.37
1.00 0.56 1.15 0.34 0.34 0.56 sq.m. 2147.09
1.50 0.84 1.72 0.51 0.51 1.27 sq.m. 954.26
2.00 1.12 2.29 0.68 0.68 2.25 sq.m. 536.77
2.50 1.41 2.87 0.85 0.85 3.52 sq.m. 343.53
3.00 1.69 3.44 1.02 1.02 5.06 sq.m. 238.57
4.00 2.25 4.59 1.36 1.36 9.00 sq.m. 134.19
5.00 2.81 5.74 1.70 1.70 14.06 sq.m. 85.88

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 2.94 2.94
2 5.88 5.88
3 8.82 8.82
4 11.76 11.76
5 14.71 14.71
6 17.65 17.65
7 20.59 20.59
8 23.53 23.53

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
