Epson EB-L1495U Projector &
Epson ELPLX02 Projector Lens

Epson EB-L1495U projector lens image

Epson EB-L1495U

  • 9000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 23.7kg (52.2lb.)
  • 5 years/20000 hours (whichever first) warranty
  • Epson EB-L1495U
Epson EB-L1495U & Epson ELPLX02
Epson ELPLX02 projector lens image

Epson ELPLX02
Suitable For

Epson ELPLX02 Lens Only
£17136 (£20563.20 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
0.60m 0.60m 334.45

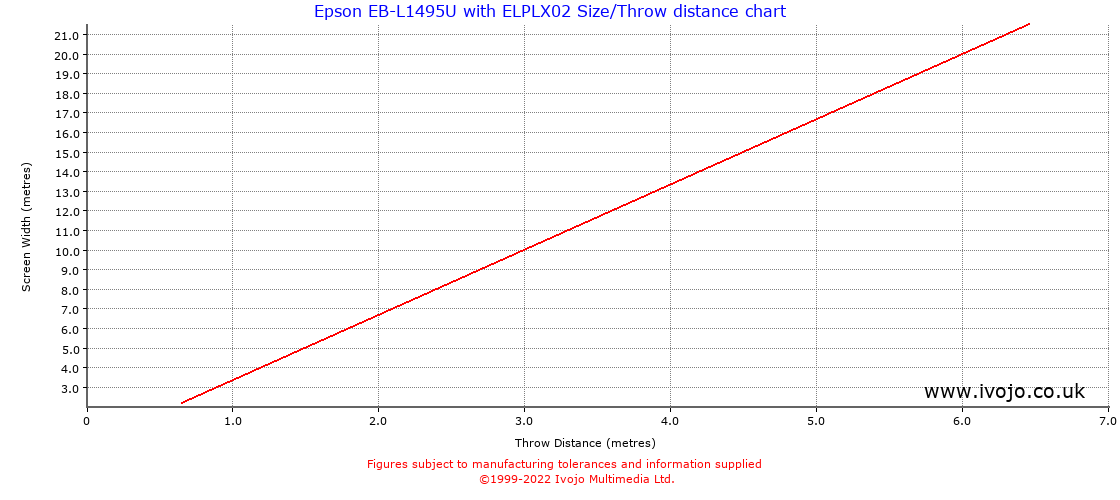

Throw Chard for Epson EB-L1495U fitted with Epson ELPLX02

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.15 0.15 0.14 sq.m. 5945.79
1.00 0.56 1.15 0.30 0.30 0.56 sq.m. 1486.45
1.50 0.84 1.72 0.45 0.45 1.27 sq.m. 660.64
2.00 1.12 2.29 0.60 0.60 2.25 sq.m. 371.61
2.50 1.41 2.87 0.75 0.75 3.52 sq.m. 237.83
3.00 1.69 3.44 0.90 0.90 5.06 sq.m. 165.16
4.00 2.25 4.59 1.20 1.20 9.00 sq.m. 92.90
5.00 2.81 5.74 1.50 1.50 14.06 sq.m. 59.46

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 3.33 3.33
2 6.67 6.67
3 10.00 10.00
4 13.33 13.33
5 16.67 16.67
6 20.00 20.00
7 23.33 23.33
8 26.67 26.67

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
