Epson EB-PQ2010W Projector &
Epson ELPLW05 Projector Lens

Epson EB-PQ2010W projector lens image

Epson EB-PQ2010W

  • 10000 ANSI Lumens
  • UHD 3840*2160 Native Resolution
  • 3000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 18.8kg (41.4lb.)
  • 3 Year RTB warranty
  • Epson EB-PQ2010W
Epson EB-PQ2010W & Epson ELPLW05 : POA
Epson ELPLW05 projector lens image

Epson ELPLW05
Suitable For

Epson ELPLW05 Lens Only
£1282 (£1538.40 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.48m 2.08m 412.95

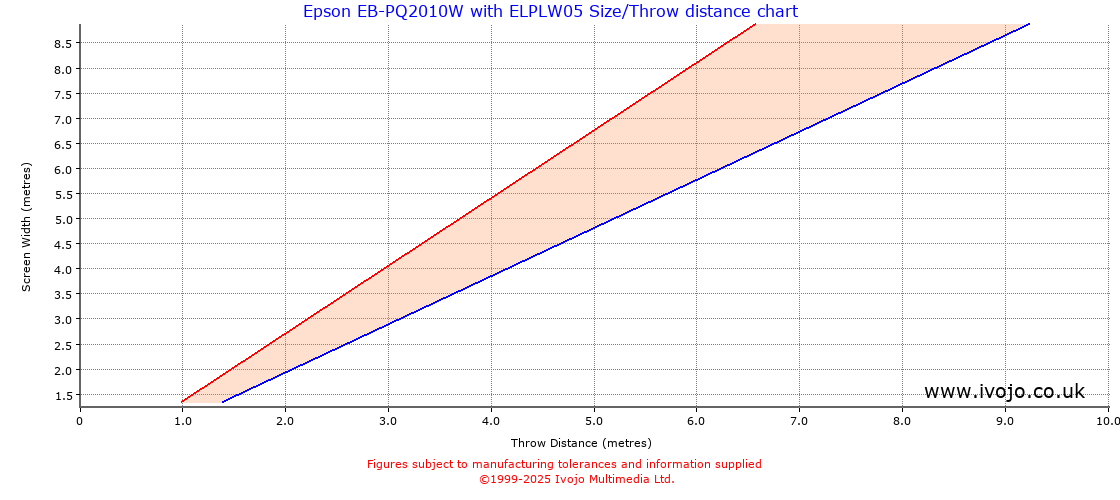

Throw Chard for Epson EB-PQ2010W fitted with Epson ELPLW05

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.37 0.52 0.14 sq.m. 6606.44
1.00 0.56 1.15 0.74 1.04 0.56 sq.m. 1651.61
1.50 0.84 1.72 1.11 1.56 1.27 sq.m. 734.05
2.00 1.12 2.29 1.48 2.08 2.25 sq.m. 412.90
2.50 1.41 2.87 1.85 2.60 3.52 sq.m. 264.26
3.00 1.69 3.44 2.22 3.12 5.06 sq.m. 183.51
4.00 2.25 4.59 2.96 4.16 9.00 sq.m. 103.23
5.00 2.81 5.74 3.70 5.20 14.06 sq.m. 66.06

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.96 1.35
2 1.92 2.70
3 2.88 4.05
4 3.85 5.41
5 4.81 6.76
6 5.77 8.11
7 6.73 9.46
8 7.69 10.81

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
