Epson EB-L1715S Projector &
Epson ELPLW05 Projector Lens
Epson EB-L1715S
- 15000 ANSI Lumens
- SXGA+ 1400*1050 Native Resolution
- 2500000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 23.7kg (52.2lb.)
- 5 year/20,000 hours (whichever first) RTB warranty
- Epson EB-L1715S
Epson EB-L1715S & Epson ELPLW05
Epson ELPLW05 Lens Only
£1311 (£1573.20 inc. VAT)
Availability: In stock
Availability: In stock
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
1.58m | 2.24m | 464.40 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.38 | 0.62 | 0.40 | 0.56 | 0.19 sq.m. | 7432.24 |
| 1.00 | 0.75 | 1.25 | 0.79 | 1.12 | 0.75 sq.m. | 1858.06 |
| 1.50 | 1.12 | 1.88 | 1.19 | 1.68 | 1.69 sq.m. | 825.80 |
| 2.00 | 1.50 | 2.50 | 1.58 | 2.24 | 3.00 sq.m. | 464.52 |
| 2.50 | 1.88 | 3.12 | 1.98 | 2.80 | 4.69 sq.m. | 297.29 |
| 3.00 | 2.25 | 3.75 | 2.37 | 3.36 | 6.75 sq.m. | 206.45 |
| 4.00 | 3.00 | 5.00 | 3.16 | 4.48 | 12.00 sq.m. | 116.13 |
| 5.00 | 3.75 | 6.25 | 3.95 | 5.60 | 18.75 sq.m. | 74.32 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

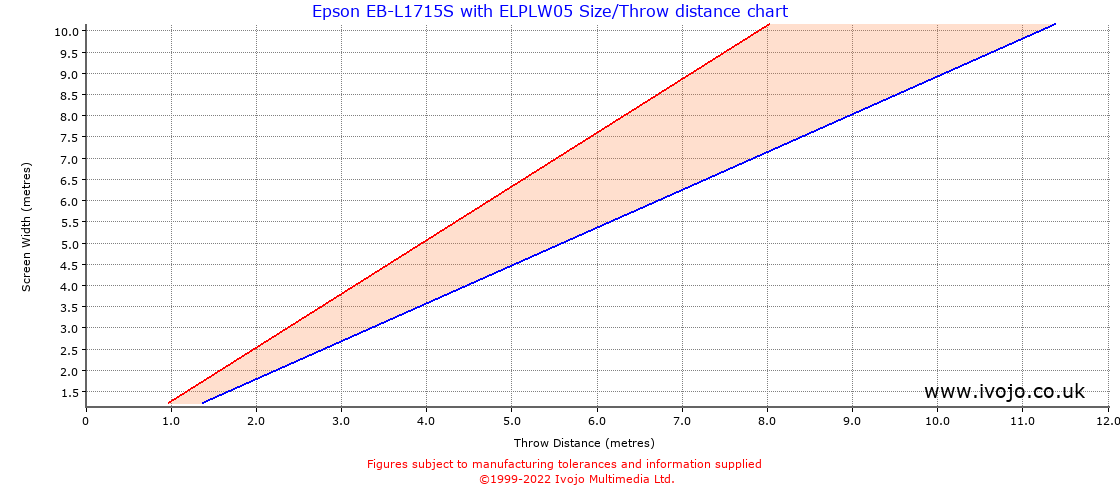

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.89 | 1.27 |
| 2 | 1.79 | 2.53 |
| 3 | 2.68 | 3.80 |
| 4 | 3.57 | 5.06 |
| 5 | 4.46 | 6.33 |
| 6 | 5.36 | 7.59 |
| 7 | 6.25 | 8.86 |
| 8 | 7.14 | 10.13 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
