Epson EB-L1100U Projector &
Epson ELPLU04 Projector Lens

Epson EB-L1100U projector lens image

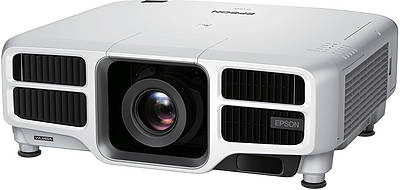

Epson EB-L1100U

  • 6000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 20kg (44.1lb.)
  • 5yr/20,000hr return to base (whichever first) warranty
  • Epson EB-L1100U
Epson EB-L1100U & Epson ELPLU04
Epson ELPLU04 projector lens image

Epson ELPLU04
Suitable For

Epson ELPLU04 Lens Only
£2878 (£3453.60 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.74m 2.10m 222.97
images/throw-chart/large/epson/epson-eb-l1100u-elplu04

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.43 0.53 0.14 sq.m. 3963.86
1.00 0.56 1.15 0.87 1.05 0.56 sq.m. 990.97
1.50 0.84 1.72 1.30 1.58 1.27 sq.m. 440.43
2.00 1.12 2.29 1.74 2.10 2.25 sq.m. 247.74
2.50 1.41 2.87 2.17 2.62 3.52 sq.m. 158.55
3.00 1.69 3.44 2.61 3.15 5.06 sq.m. 110.11
4.00 2.25 4.59 3.48 4.20 9.00 sq.m. 61.94
5.00 2.81 5.74 4.35 5.25 14.06 sq.m. 39.64

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.95 1.15
2 1.90 2.30
3 2.86 3.45
4 3.81 4.60
5 4.76 5.75
6 5.71 6.90
7 6.67 8.05
8 7.62 9.20

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
