Epson EB-PU2113W Projector &
Epson ELPLU03S Projector Lens

Epson EB-PU2113W projector lens image

Epson EB-PU2113W

  • 13000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2500000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 23.7kg (52.2lb.)
  • 3 years/12,000 hours (whichever first) RTB warranty
  • Epson EB-PU2113W
Epson EB-PU2113W & Epson ELPLU03S : POA
Epson ELPLU03S projector lens image

Epson ELPLU03S
Suitable For

Epson ELPLU03S Lens Only: POA

Select a Screen

 Min. Throw Max Throw Foot Lamberts
0.96m 1.14m 483.10

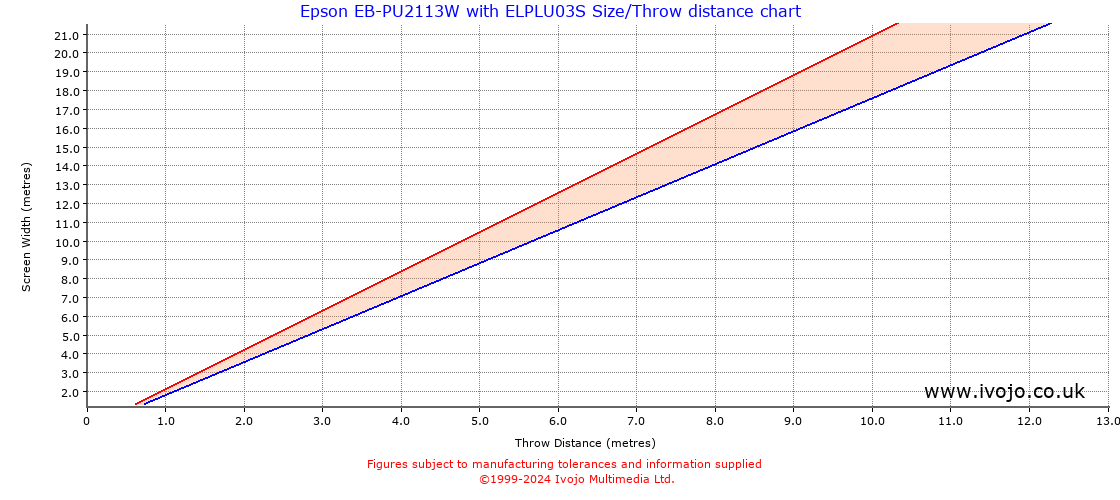

Throw Chard for Epson EB-PU2113W fitted with Epson ELPLU03S

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.24 0.28 0.14 sq.m. 8588.37
1.00 0.56 1.15 0.48 0.57 0.56 sq.m. 2147.09
1.50 0.84 1.72 0.72 0.85 1.27 sq.m. 954.26
2.00 1.12 2.29 0.96 1.14 2.25 sq.m. 536.77
2.50 1.41 2.87 1.20 1.42 3.52 sq.m. 343.53
3.00 1.69 3.44 1.44 1.71 5.06 sq.m. 238.57
4.00 2.25 4.59 1.92 2.28 9.00 sq.m. 134.19
5.00 2.81 5.74 2.40 2.85 14.06 sq.m. 85.88

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.75 2.08
2 3.51 4.17
3 5.26 6.25
4 7.02 8.33
5 8.77 10.42
6 10.53 12.50
7 12.28 14.58
8 14.04 16.67

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
