Epson EB-L30000U Projector &
Epson ELPLR05 Projector Lens

Epson EB-L30000U projector lens image

Epson EB-L30000U

  • 30000 ANSI Lumens
  • WUXGA 1920×1200 Native Resolution
  • 3500:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 63.8kg (140.7lb.)
  • 5 Years/20,000 Hours (whichever first) warranty
  • Epson EB-L30000U
Epson EB-L30000U & Epson ELPLR05
£52892 (£63470.40 inc. VAT)
Availability:
Epson ELPLR05 projector lens image

Epson ELPLR05
Suitable For

Epson ELPLR05 Lens Only
£9735 (£11682.00 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
1.22m 1.22m 1114.84

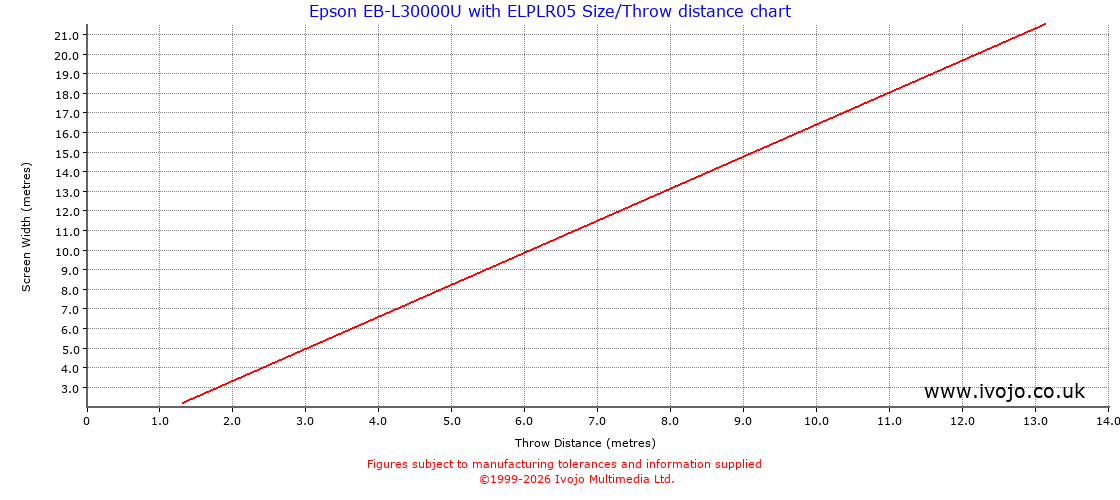

Throw Chard for Epson EB-L30000U fitted with Epson ELPLR05

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.30 0.30 0.14 sq.m. 19819.32
1.00 0.56 1.15 0.61 0.61 0.56 sq.m. 4954.83
1.50 0.84 1.72 0.92 0.92 1.27 sq.m. 2202.15
2.00 1.12 2.29 1.22 1.22 2.25 sq.m. 1238.71
2.50 1.41 2.87 1.52 1.52 3.52 sq.m. 792.77
3.00 1.69 3.44 1.83 1.83 5.06 sq.m. 550.54
4.00 2.25 4.59 2.44 2.44 9.00 sq.m. 309.68
5.00 2.81 5.74 3.05 3.05 14.06 sq.m. 198.19

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.64 1.64
2 3.28 3.28
3 4.92 4.92
4 6.56 6.56
5 8.20 8.20
6 9.84 9.84
7 11.48 11.48
8 13.11 13.11

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
