Epson EB-L1495U Projector &
Epson ELPLM15 Projector Lens

Epson EB-L1495U projector lens image

Epson EB-L1495U

  • 9000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 23.7kg (52.2lb.)
  • 5 years/20000 hours (whichever first) warranty
  • Epson EB-L1495U
Epson EB-L1495U & Epson ELPLM15
Epson ELPLM15 projector lens image

Epson ELPLM15
Suitable For

Epson ELPLM15 Lens Only
£1120 (£1344.00 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
3.16m 5.14m 334.45

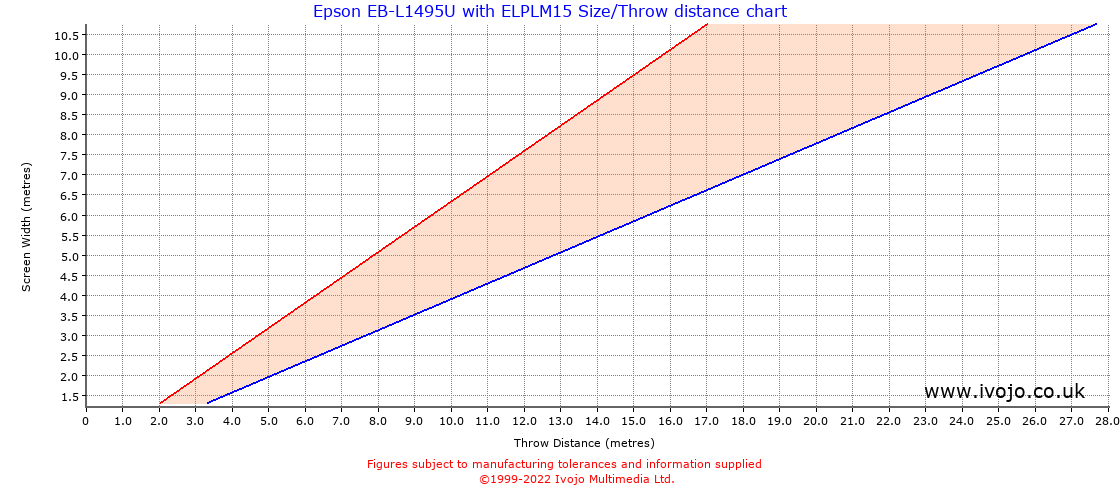

Throw Chard for Epson EB-L1495U fitted with Epson ELPLM15

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.79 1.28 0.14 sq.m. 5945.79
1.00 0.56 1.15 1.58 2.57 0.56 sq.m. 1486.45
1.50 0.84 1.72 2.37 3.85 1.27 sq.m. 660.64
2.00 1.12 2.29 3.16 5.14 2.25 sq.m. 371.61
2.50 1.41 2.87 3.95 6.42 3.52 sq.m. 237.83
3.00 1.69 3.44 4.74 7.71 5.06 sq.m. 165.16
4.00 2.25 4.59 6.32 10.28 9.00 sq.m. 92.90
5.00 2.81 5.74 7.90 12.85 14.06 sq.m. 59.46

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.39 0.63
2 0.78 1.27
3 1.17 1.90
4 1.56 2.53
5 1.95 3.16
6 2.33 3.80
7 2.72 4.43
8 3.11 5.06

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
