Epson EB-L30000U Projector &
Epson ELPLM14 Projector Lens

Epson EB-L30000U projector lens image

Epson EB-L30000U

  • 30000 ANSI Lumens
  • WUXGA 1920×1200 Native Resolution
  • 3500:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 63.8kg (140.7lb.)
  • 5 Years/20,000 Hours (whichever first) warranty
  • Epson EB-L30000U
Epson EB-L30000U & Epson ELPLM14
£47903 (£57483.60 inc. VAT)
Availability:
Epson ELPLM14 projector lens image

Epson ELPLM14
Suitable For

Epson ELPLM14 Lens Only
£4746 (£5695.20 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
6.78m 10.22m 1114.84

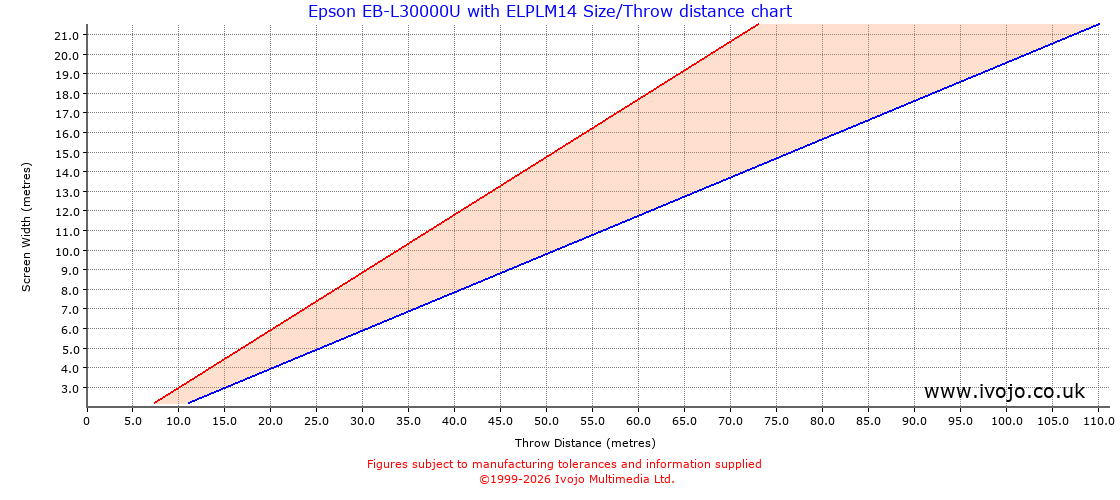

Throw Chard for Epson EB-L30000U fitted with Epson ELPLM14

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.70 2.56 0.14 sq.m. 19819.32
1.00 0.56 1.15 3.39 5.11 0.56 sq.m. 4954.83
1.50 0.84 1.72 5.08 7.67 1.27 sq.m. 2202.15
2.00 1.12 2.29 6.78 10.22 2.25 sq.m. 1238.71
2.50 1.41 2.87 8.47 12.78 3.52 sq.m. 792.77
3.00 1.69 3.44 10.17 15.33 5.06 sq.m. 550.54
4.00 2.25 4.59 13.56 20.44 9.00 sq.m. 309.68
5.00 2.81 5.74 16.95 25.55 14.06 sq.m. 198.19

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.20 0.29
2 0.39 0.59
3 0.59 0.88
4 0.78 1.18
5 0.98 1.47
6 1.17 1.77
7 1.37 2.06
8 1.57 2.36

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
