Epson EB-PQ2216W Projector &
Epson ELPLM11 Projector Lens
Epson EB-PQ2216W
- 16000 ANSI Lumens
- UHD 3840×2160 Native Resolution
- 3000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 28.8kg (63.5lb.)
- 3 Year RTB warranty
- Epson EB-PQ2216W
Epson EB-PQ2216W & Epson ELPLM11
£18306 (£21967.20 inc. VAT)
Availability: 7-10 Days
Availability: 7-10 Days
Epson ELPLM11
Suitable For
- Epson EB-PQ2008B
- Epson EB-PQ2008W
- Epson EB-PQ2010B
- Epson EB-PQ2010W
- Epson EB-PQ2213B
- Epson EB-PQ2216B
- Epson EB-PQ2216W
- Epson EB-PQ2220B
- Epson EB-PU1006W
- Epson EB-PU1007B
- Epson EB-PU1007W
- Epson EB-PU1008B
- Epson EB-PU1008W
- Epson EB-PU2010B
- Epson EB-PU2010W
- Epson EB-PU2113W
- Epson EB-PU2116W
- Epson EB-PU2120W
- Epson EB-PU2213B
- Epson EB-PU2216B
- Epson EB-PU2216W
- Epson EB-PU2220B
- View Details
Epson ELPLM11 Lens Only
£1341 (£1609.20 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
6.84m | 10.46m | 660.73 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 1.71 | 2.62 | 0.14 sq.m. | 10570.30 |
| 1.00 | 0.56 | 1.15 | 3.42 | 5.23 | 0.56 sq.m. | 2642.58 |
| 1.50 | 0.84 | 1.72 | 5.13 | 7.85 | 1.27 sq.m. | 1174.48 |
| 2.00 | 1.12 | 2.29 | 6.84 | 10.46 | 2.25 sq.m. | 660.64 |
| 2.50 | 1.41 | 2.87 | 8.55 | 13.08 | 3.52 sq.m. | 422.81 |
| 3.00 | 1.69 | 3.44 | 10.26 | 15.69 | 5.06 sq.m. | 293.62 |
| 4.00 | 2.25 | 4.59 | 13.68 | 20.92 | 9.00 sq.m. | 165.16 |
| 5.00 | 2.81 | 5.74 | 17.10 | 26.15 | 14.06 sq.m. | 105.70 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

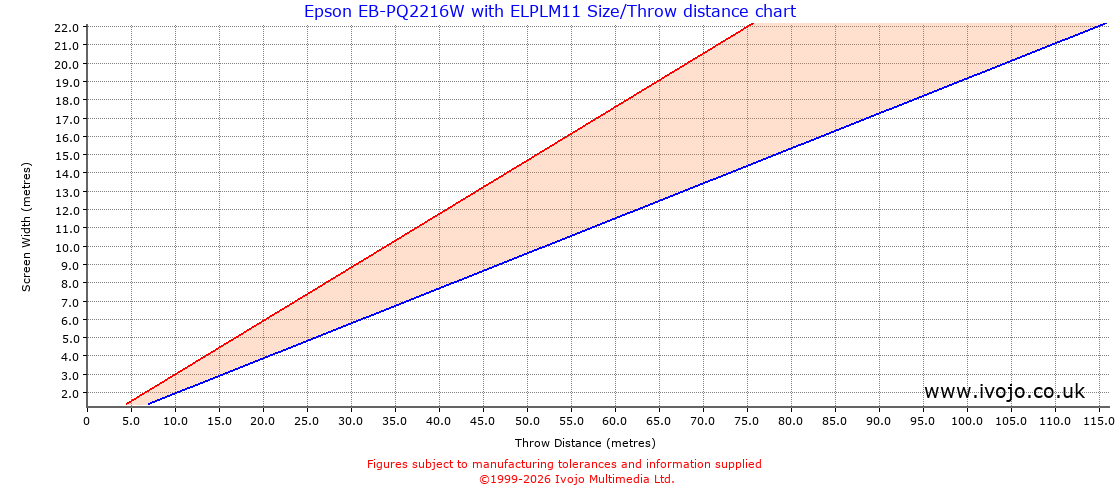

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.19 | 0.29 |
| 2 | 0.38 | 0.58 |
| 3 | 0.57 | 0.88 |
| 4 | 0.76 | 1.17 |
| 5 | 0.96 | 1.46 |
| 6 | 1.15 | 1.75 |
| 7 | 1.34 | 2.05 |
| 8 | 1.53 | 2.34 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
