Epson EB-L1715S Projector &
Epson ELPLM11 Projector Lens

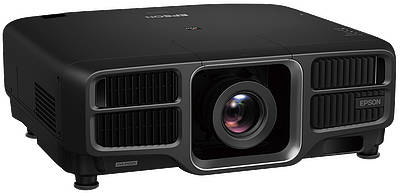

Epson EB-L1715S projector lens image

Epson EB-L1715S

  • 15000 ANSI Lumens
  • SXGA+ 1400*1050 Native Resolution
  • 2500000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 23.7kg (52.2lb.)
  • 5 year/20,000 hours (whichever first) RTB warranty
  • Epson EB-L1715S
Epson EB-L1715S & Epson ELPLM11
Epson ELPLM11 projector lens image

Epson ELPLM11
Suitable For

Epson ELPLM11 Lens Only
£1311 (£1573.20 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
7.28m 11.16m 464.40

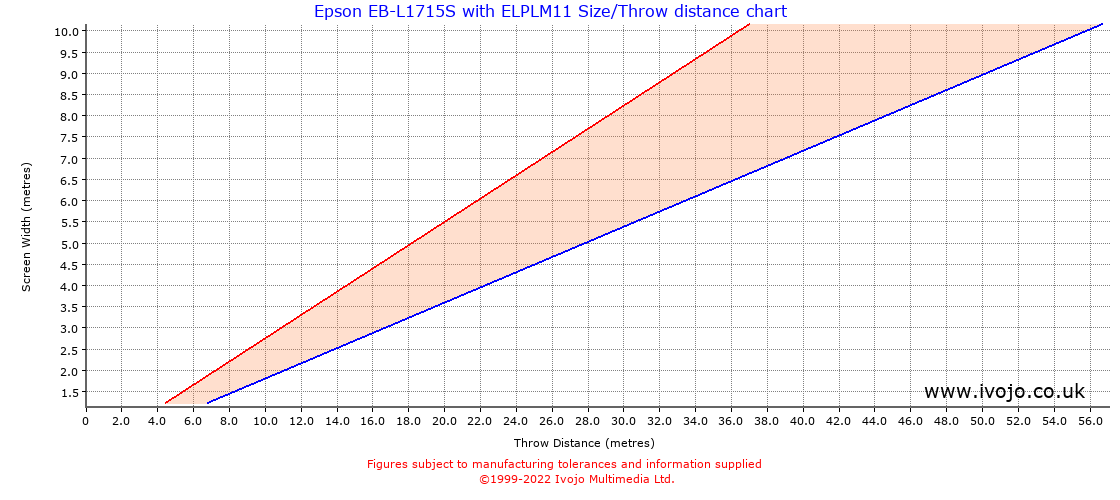

Throw Chard for Epson EB-L1715S fitted with Epson ELPLM11

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.38 0.62 1.82 2.79 0.19 sq.m. 7432.24
1.00 0.75 1.25 3.64 5.58 0.75 sq.m. 1858.06
1.50 1.12 1.88 5.46 8.37 1.69 sq.m. 825.80
2.00 1.50 2.50 7.28 11.16 3.00 sq.m. 464.52
2.50 1.88 3.12 9.10 13.95 4.69 sq.m. 297.29
3.00 2.25 3.75 10.92 16.74 6.75 sq.m. 206.45
4.00 3.00 5.00 14.56 22.32 12.00 sq.m. 116.13
5.00 3.75 6.25 18.20 27.90 18.75 sq.m. 74.32

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.18 0.27
2 0.36 0.55
3 0.54 0.82
4 0.72 1.10
5 0.90 1.37
6 1.08 1.65
7 1.25 1.92
8 1.43 2.20

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
