Epson EB-PU1007W Projector &
Epson ELPLM10 Projector Lens

Epson EB-PU1007W projector lens image

Epson EB-PU1007W

  • 7000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2500000:1 Contrast Ratio
  • hour lamp life (typical)
  • Lens Shift function
  • 15.4kg (34.0lb.)
  • 3 years/12,000 hours (whichever first) RTB warranty
  • Epson EB-PU1007W
Epson EB-PU1007W & Epson ELPLM10
£5774 (£6928.80 inc. VAT)
Availability: In Stock
Epson ELPLM10 projector lens image

Epson ELPLM10
Suitable For

Epson ELPLM10 Lens Only
£1311 (£1573.20 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
6.64m 10.12m 260.13

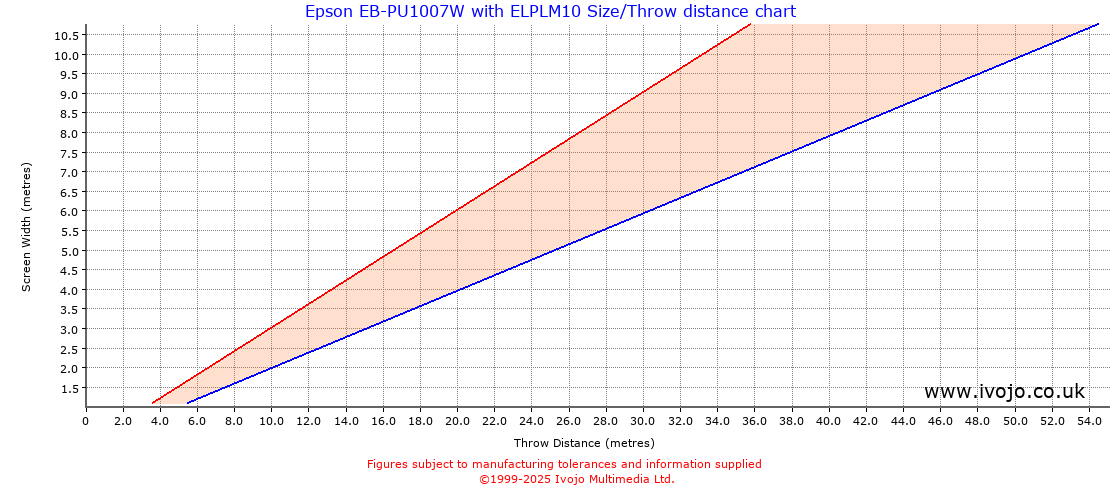

Throw Chard for Epson EB-PU1007W fitted with Epson ELPLM10

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.66 2.53 0.14 sq.m. 4624.51
1.00 0.56 1.15 3.32 5.06 0.56 sq.m. 1156.13
1.50 0.84 1.72 4.98 7.59 1.27 sq.m. 513.83
2.00 1.12 2.29 6.64 10.12 2.25 sq.m. 289.03
2.50 1.41 2.87 8.30 12.65 3.52 sq.m. 184.98
3.00 1.69 3.44 9.96 15.18 5.06 sq.m. 128.46
4.00 2.25 4.59 13.28 20.24 9.00 sq.m. 72.26
5.00 2.81 5.74 16.60 25.30 14.06 sq.m. 46.25

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.20 0.30
2 0.40 0.60
3 0.59 0.90
4 0.79 1.20
5 0.99 1.51
6 1.19 1.81
7 1.38 2.11
8 1.58 2.41

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
