Epson EB-L1495U Projector &
Epson ELPLM10 Projector Lens

Epson EB-L1495U projector lens image

Epson EB-L1495U

  • 9000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 23.7kg (52.2lb.)
  • 5 years/20000 hours (whichever first) warranty
  • Epson EB-L1495U
Epson EB-L1495U & Epson ELPLM10
Epson ELPLM10 projector lens image

Epson ELPLM10
Suitable For

Epson ELPLM10 Lens Only
£1311 (£1573.20 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
4.88m 7.46m 334.45

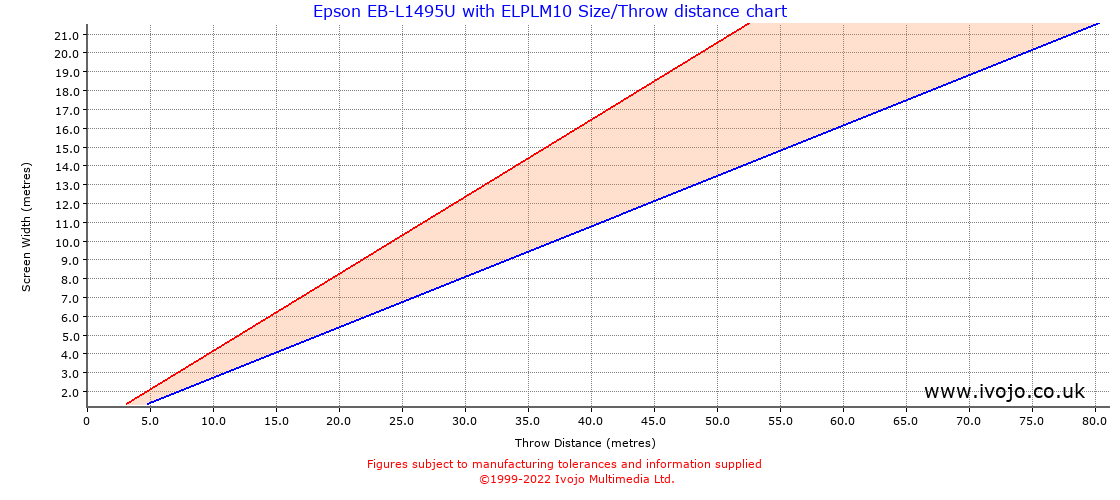

Throw Chard for Epson EB-L1495U fitted with Epson ELPLM10

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.22 1.86 0.14 sq.m. 5945.79
1.00 0.56 1.15 2.44 3.73 0.56 sq.m. 1486.45
1.50 0.84 1.72 3.66 5.59 1.27 sq.m. 660.64
2.00 1.12 2.29 4.88 7.46 2.25 sq.m. 371.61
2.50 1.41 2.87 6.10 9.32 3.52 sq.m. 237.83
3.00 1.69 3.44 7.32 11.19 5.06 sq.m. 165.16
4.00 2.25 4.59 9.76 14.92 9.00 sq.m. 92.90
5.00 2.81 5.74 12.20 18.65 14.06 sq.m. 59.46

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.27 0.41
2 0.54 0.82
3 0.80 1.23
4 1.07 1.64
5 1.34 2.05
6 1.61 2.46
7 1.88 2.87
8 2.14 3.28

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
