Epson EB-PQ2010W Projector &
Epson ELPLM08 Projector Lens

Epson EB-PQ2010W projector lens image

Epson EB-PQ2010W

  • 10000 ANSI Lumens
  • UHD 3840*2160 Native Resolution
  • 3000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 18.8kg (41.4lb.)
  • 3 Year RTB warranty
  • Epson EB-PQ2010W
Epson EB-PQ2010W & Epson ELPLM08 : POA
Epson ELPLM08 projector lens image

Epson ELPLM08
Suitable For

Epson ELPLM08 Lens Only
£408 (£489.60 inc. VAT)
Availability: In stock

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.04m 3.28m 412.95

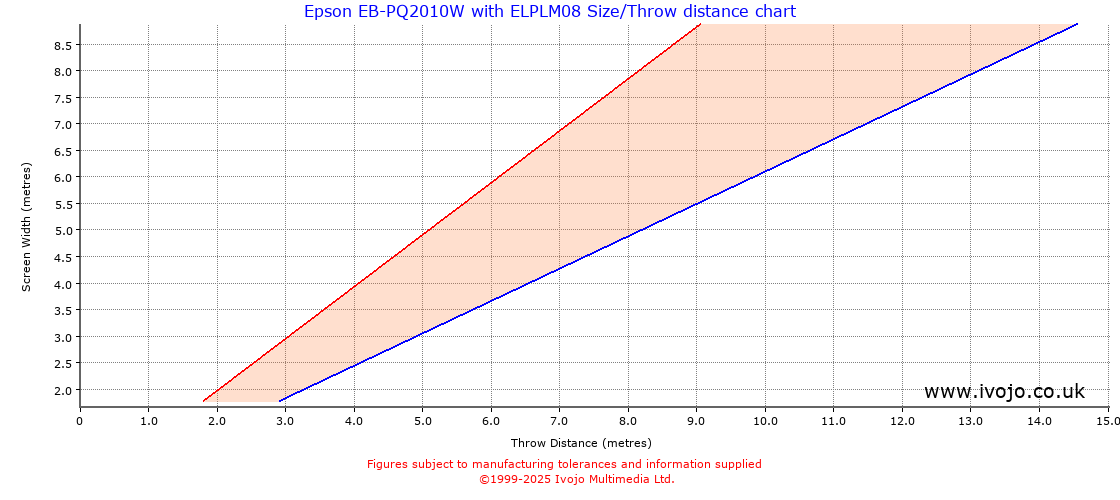

Throw Chard for Epson EB-PQ2010W fitted with Epson ELPLM08

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.51 0.82 0.14 sq.m. 6606.44
1.00 0.56 1.15 1.02 1.64 0.56 sq.m. 1651.61
1.50 0.84 1.72 1.53 2.46 1.27 sq.m. 734.05
2.00 1.12 2.29 2.04 3.28 2.25 sq.m. 412.90
2.50 1.41 2.87 2.55 4.10 3.52 sq.m. 264.26
3.00 1.69 3.44 3.06 4.92 5.06 sq.m. 183.51
4.00 2.25 4.59 4.08 6.56 9.00 sq.m. 103.23
5.00 2.81 5.74 5.10 8.20 14.06 sq.m. 66.06

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.61 0.98
2 1.22 1.96
3 1.83 2.94
4 2.44 3.92
5 3.05 4.90
6 3.66 5.88
7 4.27 6.86
8 4.88 7.84

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
