Epson EB-PU2216B Projector &
Epson ELPLL10 Projector Lens

Epson EB-PU2216B projector lens image

Epson EB-PU2216B

  • 16000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2500000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 24.3kg (53.6lb.)
  • 3 years/12,000 hours (whichever first) RTB warranty
  • Epson EB-PU2216B
Epson EB-PU2216B & Epson ELPLL10
£23547 (£28256.40 inc. VAT)
Availability:

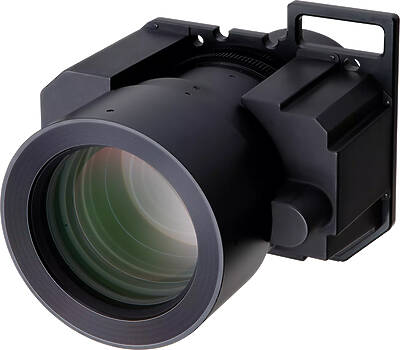

Epson ELPLL10 projector lens image

Epson ELPLL10
Suitable For

Epson ELPLL10 Lens Only
£9629 (£11554.80 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
3.14m 5.12m 594.58
Throw Chard for Epson EB-PU2216B fitted with Epson ELPLL10

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.79 1.28 0.14 sq.m. 10570.30
1.00 0.56 1.15 1.57 2.56 0.56 sq.m. 2642.58
1.50 0.84 1.72 2.35 3.84 1.27 sq.m. 1174.48
2.00 1.12 2.29 3.14 5.12 2.25 sq.m. 660.64
2.50 1.41 2.87 3.93 6.40 3.52 sq.m. 422.81
3.00 1.69 3.44 4.71 7.68 5.06 sq.m. 293.62
4.00 2.25 4.59 6.28 10.24 9.00 sq.m. 165.16
5.00 2.81 5.74 7.85 12.80 14.06 sq.m. 105.70

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.39 0.64
2 0.78 1.27
3 1.17 1.91
4 1.56 2.55
5 1.95 3.18
6 2.34 3.82
7 2.73 4.46
8 3.12 5.10

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
