Epson EB-L30000U Projector &
Epson ELPLL09 Projector Lens

Epson EB-L30000U projector lens image

Epson EB-L30000U

  • 30000 ANSI Lumens
  • WUXGA 1920×1200 Native Resolution
  • 3500:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 63.8kg (140.7lb.)
  • 5 Years/20,000 Hours (whichever first) warranty
  • Epson EB-L30000U
Epson EB-L30000U & Epson ELPLL09
£49537 (£59444.40 inc. VAT)
Availability:
Epson ELPLL09 projector lens image

Epson ELPLL09
Suitable For

Epson ELPLL09 Lens Only
£6380 (£7656.00 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
9.54m 14.36m 1114.84

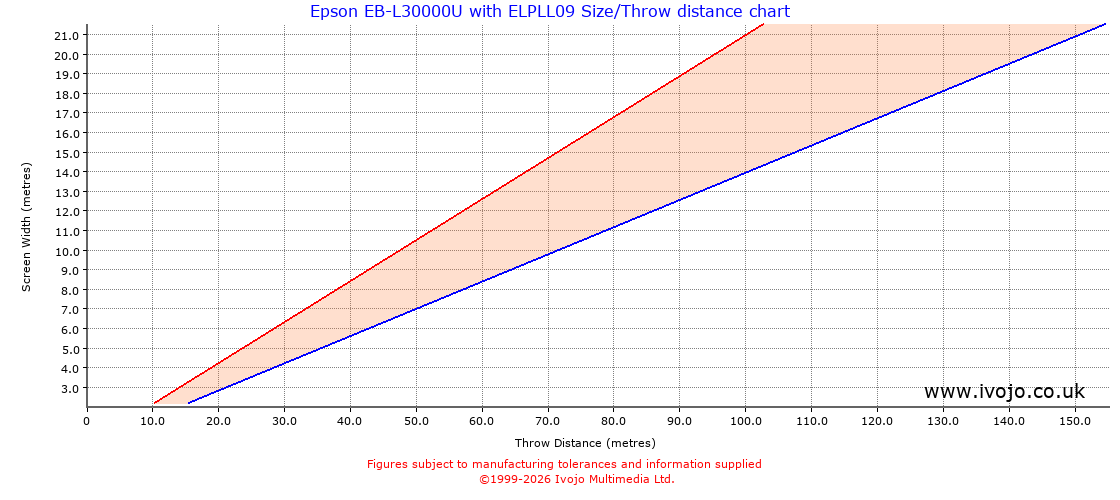

Throw Chard for Epson EB-L30000U fitted with Epson ELPLL09

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 2.38 3.59 0.14 sq.m. 19819.32
1.00 0.56 1.15 4.77 7.18 0.56 sq.m. 4954.83
1.50 0.84 1.72 7.15 10.77 1.27 sq.m. 2202.15
2.00 1.12 2.29 9.54 14.36 2.25 sq.m. 1238.71
2.50 1.41 2.87 11.92 17.95 3.52 sq.m. 792.77
3.00 1.69 3.44 14.31 21.54 5.06 sq.m. 550.54
4.00 2.25 4.59 19.08 28.72 9.00 sq.m. 309.68
5.00 2.81 5.74 23.85 35.90 14.06 sq.m. 198.19

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.14 0.21
2 0.28 0.42
3 0.42 0.63
4 0.56 0.84
5 0.70 1.05
6 0.84 1.26
7 0.97 1.47
8 1.11 1.68

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
