Epson EB-G7200W Projector &
Epson ELPLL08 Projector Lens

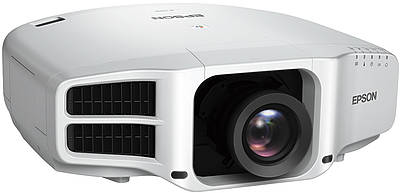

Epson EB-G7200W projector lens image

Epson EB-G7200W

  • 7500 ANSI Lumens
  • WXGA 1280*800 Native Resolution
  • 50000:1 Contrast Ratio
  • 3000 hour lamp life (typical)
  • Lens Shift function
  • 12.7kg (28.0lb.)
  • 3 year/20,000 hours (whichever first) RTB warranty
  • Epson EB-G7200W
Epson EB-G7200W & Epson ELPLL08
Epson ELPLL08 projector lens image

Epson ELPLL08
Suitable For

Epson ELPLL08 Lens Only
£2097 (£2516.40 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
14.42m 20.22m 278.71
images/throw-chart/large/epson/epson-eb-g7200w-elpll08

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 3.60 5.05 0.14 sq.m. 4954.83
1.00 0.56 1.15 7.21 10.11 0.56 sq.m. 1238.71
1.50 0.84 1.72 10.81 15.16 1.27 sq.m. 550.54
2.00 1.12 2.29 14.42 20.22 2.25 sq.m. 309.68
2.50 1.41 2.87 18.02 25.27 3.52 sq.m. 198.19
3.00 1.69 3.44 21.63 30.33 5.06 sq.m. 137.63
4.00 2.25 4.59 28.84 40.44 9.00 sq.m. 77.42
5.00 2.81 5.74 36.05 50.55 14.06 sq.m. 49.55

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.10 0.14
2 0.20 0.28
3 0.30 0.42
4 0.40 0.55
5 0.49 0.69
6 0.59 0.83
7 0.69 0.97
8 0.79 1.11

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
