Digital Projection E-Vision Laser 4K-UHD Projector &
Digital Projection 117-341 Projector Lens

Digital Projection E-Vision Laser 4K-UHD projector lens image

Digital Projection E-Vision Laser 4K-UHD

Digital Projection E-Vision Laser 4K-UHD & Digital Projection 117-341
£13282 (£15938.40 inc. VAT)
Availability: 7-10 Days
Digital Projection 117-341 projector lens image

Digital Projection 117-341
Suitable For

Digital Projection 117-341 Lens Only
£4193 (£5031.60 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
0.76m 0.76m 309.54

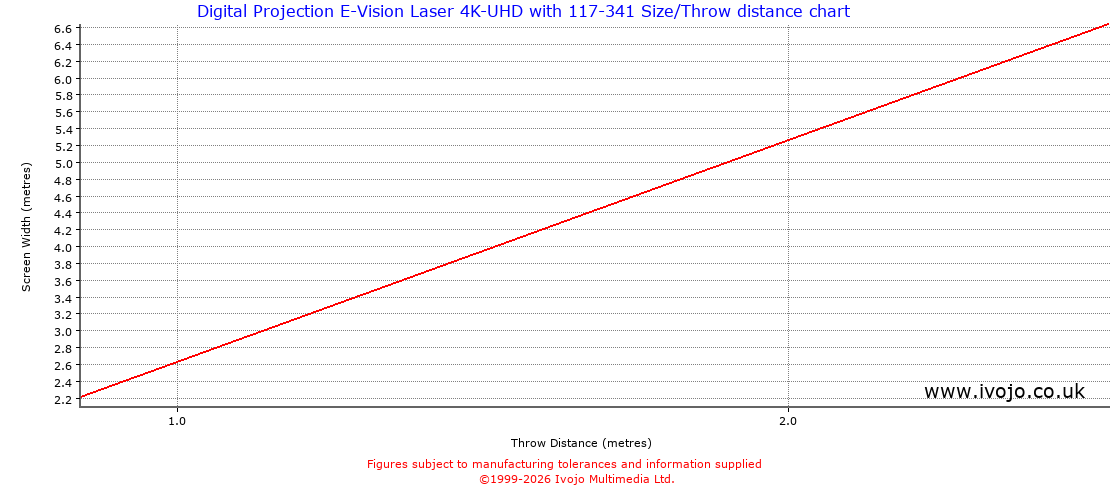

Throw Chard for Digital Projection E-Vision Laser 4K-UHD fitted with Digital Projection 117-341

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.19 0.19 0.14 sq.m. 4954.83
1.00 0.56 1.15 0.38 0.38 0.56 sq.m. 1238.71
1.50 0.84 1.72 0.57 0.57 1.27 sq.m. 550.54
2.00 1.12 2.29 0.76 0.76 2.25 sq.m. 309.68
2.50 1.41 2.87 0.95 0.95 3.52 sq.m. 198.19
3.00 1.69 3.44 1.14 1.14 5.06 sq.m. 137.63
4.00 2.25 4.59 1.52 1.52 9.00 sq.m. 77.42
5.00 2.81 5.74 1.90 1.90 14.06 sq.m. 49.55

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 2.63 2.63
2 5.26 5.26
3 7.89 7.89
4 10.53 10.53
5 13.16 13.16
6 15.79 15.79
7 18.42 18.42
8 21.05 21.05

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
