Digital Projection E-Vision Laser 8500 Projector &
Digital Projection 112-503 Projector Lens
Digital Projection E-Vision Laser 8500
- 8500 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 10000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- 28kg (61.7lb.)
- 3 years return to base warranty
- Digital Projection E-Vision Laser 8500
Digital Projection E-Vision Laser 8500 & Digital Projection 112-503
Digital Projection 112-503
Suitable For
Digital Projection 112-503 Lens Only
£1568 (£1881.60 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
7.16m | 10.76m | 315.87 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 1.79 | 2.69 | 0.14 sq.m. | 5615.47 |
| 1.00 | 0.56 | 1.15 | 3.58 | 5.38 | 0.56 sq.m. | 1403.87 |
| 1.50 | 0.84 | 1.72 | 5.37 | 8.07 | 1.27 sq.m. | 623.94 |
| 2.00 | 1.12 | 2.29 | 7.16 | 10.76 | 2.25 sq.m. | 350.97 |
| 2.50 | 1.41 | 2.87 | 8.95 | 13.45 | 3.52 sq.m. | 224.62 |
| 3.00 | 1.69 | 3.44 | 10.74 | 16.14 | 5.06 sq.m. | 155.99 |
| 4.00 | 2.25 | 4.59 | 14.32 | 21.52 | 9.00 sq.m. | 87.74 |
| 5.00 | 2.81 | 5.74 | 17.90 | 26.90 | 14.06 sq.m. | 56.15 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

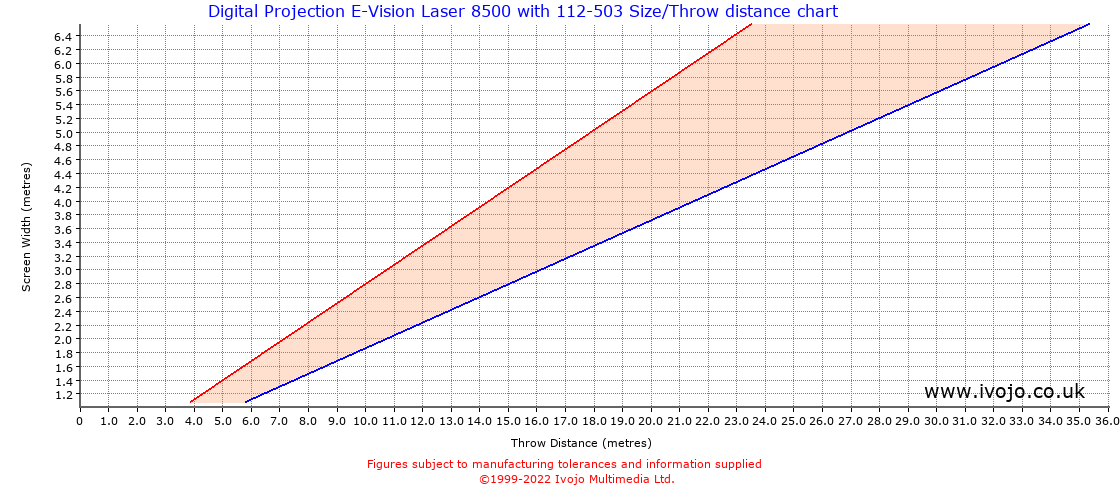

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.19 | 0.28 |
| 2 | 0.37 | 0.56 |
| 3 | 0.56 | 0.84 |
| 4 | 0.74 | 1.12 |
| 5 | 0.93 | 1.40 |
| 6 | 1.12 | 1.68 |
| 7 | 1.30 | 1.96 |
| 8 | 1.49 | 2.23 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
