Digital Projection E-Vision Laser 8500 Projector &
Digital Projection 112-502 Projector Lens

Digital Projection E-Vision Laser 8500 projector lens image

Digital Projection E-Vision Laser 8500

  • 8500 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • 28kg (61.7lb.)
  • 3 years return to base warranty
  • Digital Projection E-Vision Laser 8500
Digital Projection E-Vision Laser 8500 & Digital Projection 112-502
Digital Projection 112-502 projector lens image

Digital Projection 112-502
Suitable For

Digital Projection 112-502 Lens Only
£1523 (£1827.60 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
4.44m 7.34m 315.87

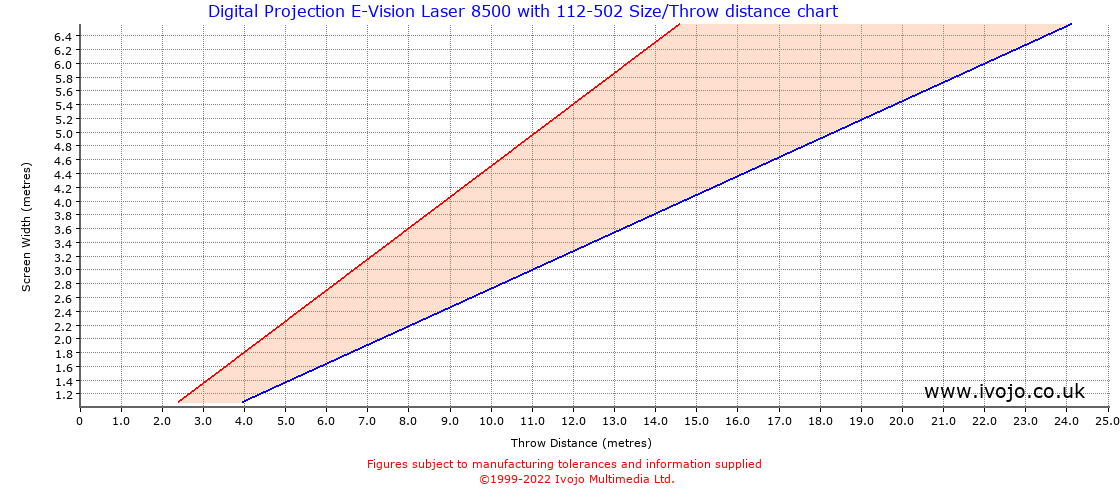

Throw Chard for Digital Projection E-Vision Laser 8500 fitted with Digital Projection 112-502

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 1.11 1.83 0.14 sq.m. 5615.47
1.00 0.56 1.15 2.22 3.67 0.56 sq.m. 1403.87
1.50 0.84 1.72 3.33 5.50 1.27 sq.m. 623.94
2.00 1.12 2.29 4.44 7.34 2.25 sq.m. 350.97
2.50 1.41 2.87 5.55 9.18 3.52 sq.m. 224.62
3.00 1.69 3.44 6.66 11.01 5.06 sq.m. 155.99
4.00 2.25 4.59 8.88 14.68 9.00 sq.m. 87.74
5.00 2.81 5.74 11.10 18.35 14.06 sq.m. 56.15

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.27 0.45
2 0.54 0.90
3 0.82 1.35
4 1.09 1.80
5 1.36 2.25
6 1.63 2.70
7 1.91 3.15
8 2.18 3.60

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
