Digital Projection E-Vision Laser 4K-UHD Projector &
Digital Projection 112-501 Projector Lens
Digital Projection E-Vision Laser 4K-UHD
- 7500 ANSI Lumens
- WQXGA 2716×1528 Native Resolution
- 10000:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 28.15kg (62.1lb.)
- warranty
- Digital Projection E-Vision Laser 4K-UHD
Digital Projection E-Vision Laser 4K-UHD & Digital Projection 112-501
£9748 (£11697.60 inc. VAT)
Availability: 1-2 Days
Availability: 1-2 Days
Digital Projection 112-501
Suitable For
Digital Projection 112-501 Lens Only
£659 (£790.80 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
|
3.42m | 4.50m | 309.54 |
Screen Size Table (Figures in metres)
| Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
| 0.50 | 0.28 | 0.57 | 0.85 | 1.12 | 0.14 sq.m. | 4954.83 |
| 1.00 | 0.56 | 1.15 | 1.71 | 2.25 | 0.56 sq.m. | 1238.71 |
| 1.50 | 0.84 | 1.72 | 2.56 | 3.38 | 1.27 sq.m. | 550.54 |
| 2.00 | 1.12 | 2.29 | 3.42 | 4.50 | 2.25 sq.m. | 309.68 |
| 2.50 | 1.41 | 2.87 | 4.28 | 5.62 | 3.52 sq.m. | 198.19 |
| 3.00 | 1.69 | 3.44 | 5.13 | 6.75 | 5.06 sq.m. | 137.63 |
| 4.00 | 2.25 | 4.59 | 6.84 | 9.00 | 9.00 sq.m. | 77.42 |
| 5.00 | 2.81 | 5.74 | 8.55 | 11.25 | 14.06 sq.m. | 49.55 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

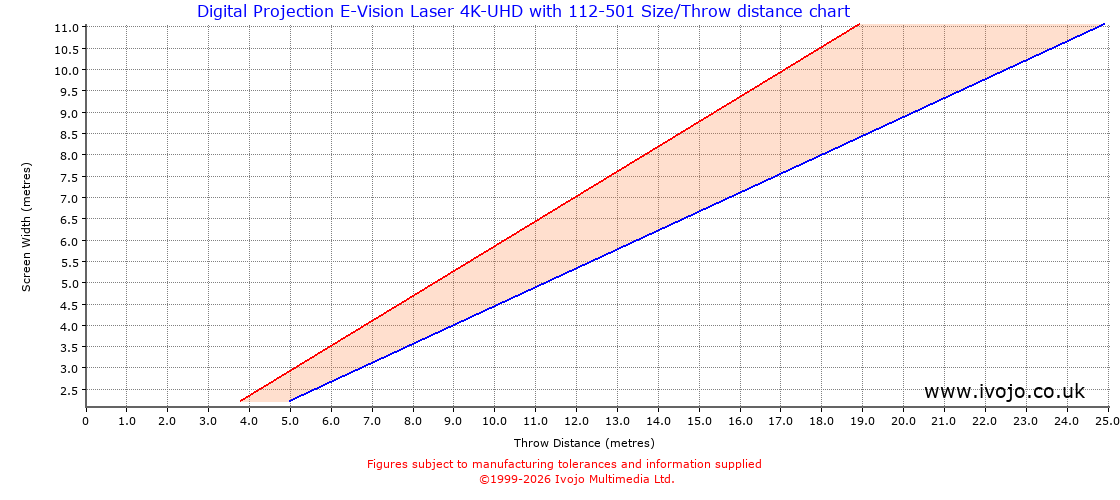

Throw Distance Table (Figures in metres)
| Distance | Minimum Width | Maximum Width |
| 1 | 0.44 | 0.58 |
| 2 | 0.89 | 1.17 |
| 3 | 1.33 | 1.75 |
| 4 | 1.78 | 2.34 |
| 5 | 2.22 | 2.92 |
| 6 | 2.67 | 3.51 |
| 7 | 3.11 | 4.09 |
| 8 | 3.56 | 4.68 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
