Digital Projection E-Vision Laser 8500 Projector &
Digital Projection 112-500 Projector Lens

Digital Projection E-Vision Laser 8500 projector lens image

Digital Projection E-Vision Laser 8500

  • 8500 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • 28kg (61.7lb.)
  • 3 years return to base warranty
  • Digital Projection E-Vision Laser 8500
Digital Projection E-Vision Laser 8500 & Digital Projection 112-500
Digital Projection 112-500 projector lens image

Digital Projection 112-500
Suitable For

Digital Projection 112-500 Lens Only
£1205 (£1446.00 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.50m 3.58m 315.87

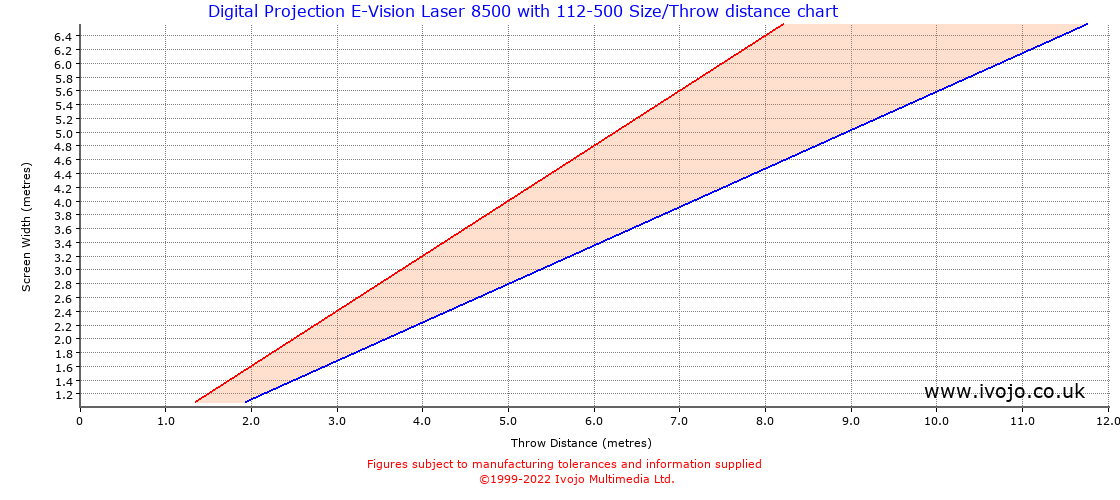

Throw Chard for Digital Projection E-Vision Laser 8500 fitted with Digital Projection 112-500

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.62 0.90 0.14 sq.m. 5615.47
1.00 0.56 1.15 1.25 1.79 0.56 sq.m. 1403.87
1.50 0.84 1.72 1.88 2.69 1.27 sq.m. 623.94
2.00 1.12 2.29 2.50 3.58 2.25 sq.m. 350.97
2.50 1.41 2.87 3.12 4.47 3.52 sq.m. 224.62
3.00 1.69 3.44 3.75 5.37 5.06 sq.m. 155.99
4.00 2.25 4.59 5.00 7.16 9.00 sq.m. 87.74
5.00 2.81 5.74 6.25 8.95 14.06 sq.m. 56.15

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.56 0.80
2 1.12 1.60
3 1.68 2.40
4 2.23 3.20
5 2.79 4.00
6 3.35 4.80
7 3.91 5.60
8 4.47 6.40

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
