Christie DWU630-GS-WH Projector &
Christie 140-133108-02 Projector Lens

Christie DWU630-GS-WH projector lens image

Christie DWU630-GS-WH

  • 6750 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 1200:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 15.85kg (34.9lb.)
  • 3 years parts and labour on the projector warranty
  • Christie DWU630-GS-WH
Christie DWU630-GS-WH & Christie 140-133108-02
£9694 (£11632.80 inc. VAT)
Availability:
Christie 140-133108-02 projector lens image

Christie 140-133108-02
Suitable For

Christie 140-133108-02 Lens Only
£5432 (£6518.40 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
0.72m 0.72m 250.84

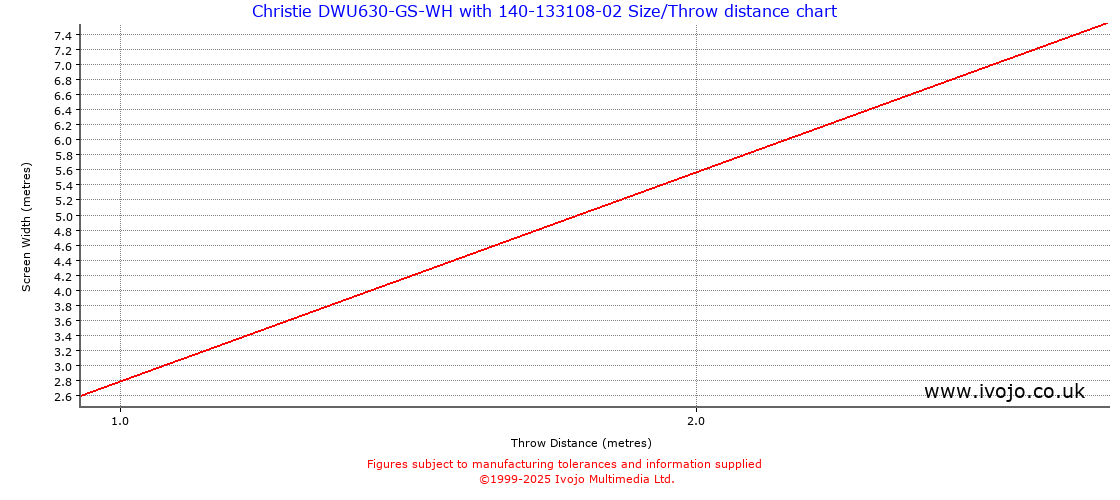

Throw Chard for Christie DWU630-GS-WH fitted with Christie 140-133108-02

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.18 0.18 0.14 sq.m. 4459.35
1.00 0.56 1.15 0.36 0.36 0.56 sq.m. 1114.84
1.50 0.84 1.72 0.54 0.54 1.27 sq.m. 495.48
2.00 1.12 2.29 0.72 0.72 2.25 sq.m. 278.71
2.50 1.41 2.87 0.90 0.90 3.52 sq.m. 178.37
3.00 1.69 3.44 1.08 1.08 5.06 sq.m. 123.87
4.00 2.25 4.59 1.44 1.44 9.00 sq.m. 69.68
5.00 2.81 5.74 1.80 1.80 14.06 sq.m. 44.59

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 2.78 2.78
2 5.56 5.56
3 8.33 8.33
4 11.11 11.11
5 13.89 13.89
6 16.67 16.67
7 19.44 19.44
8 22.22 22.22

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
