Barco F80-Q7-L Projector &
Barco GLD 1.06-1.43:1 Projector Lens

Barco F80-Q7-L projector lens image

Barco F80-Q7-L

  • 6600 ANSI Lumens
  • WQXGA 2716*1600 Native Resolution
  • 1200:1 Contrast Ratio
  • 12000 hour lamp life (typical)
  • Lens Shift function
  • 25.5kg (56.2lb.)
  • Limited 3 years RTB parts and labour warranty
  • Barco F80-Q7-L
Barco F80-Q7-L & Barco GLD 1.06-1.43:1
£16360 (£19632.00 inc. VAT)
Availability: 7-10 Days
Barco GLD 1.06-1.43:1 projector lens image

Barco GLD 1.06-1.43:1
Suitable For

Barco GLD 1.06-1.43:1 Lens Only
£4258 (£5109.60 inc. VAT)
Availability: 3-5 days

Select a Screen

 Min. Throw Max Throw Foot Lamberts
2.12m 2.86m 260.29

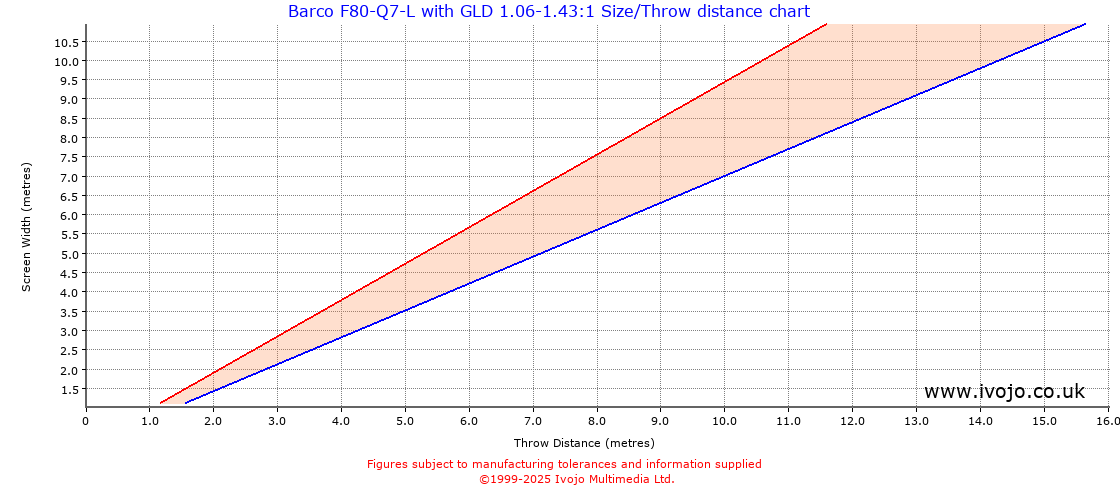

Throw Chard for Barco F80-Q7-L fitted with Barco GLD 1.06-1.43:1

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.53 0.71 0.14 sq.m. 4360.25
1.00 0.56 1.15 1.06 1.43 0.56 sq.m. 1090.06
1.50 0.84 1.72 1.59 2.15 1.27 sq.m. 484.47
2.00 1.12 2.29 2.12 2.86 2.25 sq.m. 272.52
2.50 1.41 2.87 2.65 3.57 3.52 sq.m. 174.41
3.00 1.69 3.44 3.18 4.29 5.06 sq.m. 121.12
4.00 2.25 4.59 4.24 5.72 9.00 sq.m. 68.13
5.00 2.81 5.74 5.30 7.15 14.06 sq.m. 43.60

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.70 0.94
2 1.40 1.89
3 2.10 2.83
4 2.80 3.77
5 3.50 4.72
6 4.20 5.66
7 4.90 6.60
8 5.59 7.55

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
