Barco G60-W10 Projector &
Barco G LENS (0.75-0.95 : 1) Projector Lens
Barco G60-W10
- 9000 ANSI Lumens
- WUXGA 1920*1200 Native Resolution
- 1200:1 Contrast Ratio
- 20000 hour lamp life (typical)
- Lens Shift function
- 16.9kg (37.3lb.)
- Limited 3 year parts and labour warranty
- Barco G60-W10
Barco G60-W10 & Barco G LENS (0.75-0.95 : 1)
Barco G LENS (0.75-0.95 : 1)
Suitable For
Barco G LENS (0.75-0.95 : 1) Lens Only
£1833 (£2199.60 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Select a Screen |
Min. Throw | Max Throw | Foot Lamberts |
|
1.50m | 1.90m | 334.45 |
Screen Size Table (Figures in metres)
Width | Height | Diagonal | Min. Throw | Max Throw | Area | Foot Lamberts* |
0.50 | 0.28 | 0.57 | 0.38 | 0.47 | 0.14 sq.m. | 5945.79 |
1.00 | 0.56 | 1.15 | 0.75 | 0.95 | 0.56 sq.m. | 1486.45 |
1.50 | 0.84 | 1.72 | 1.12 | 1.42 | 1.27 sq.m. | 660.64 |
2.00 | 1.12 | 2.29 | 1.50 | 1.90 | 2.25 sq.m. | 371.61 |
2.50 | 1.41 | 2.87 | 1.88 | 2.38 | 3.52 sq.m. | 237.83 |
3.00 | 1.69 | 3.44 | 2.25 | 2.85 | 5.06 sq.m. | 165.16 |
4.00 | 2.25 | 4.59 | 3.00 | 3.80 | 9.00 sq.m. | 92.90 |
5.00 | 2.81 | 5.74 | 3.75 | 4.75 | 14.06 sq.m. | 59.46 |
*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

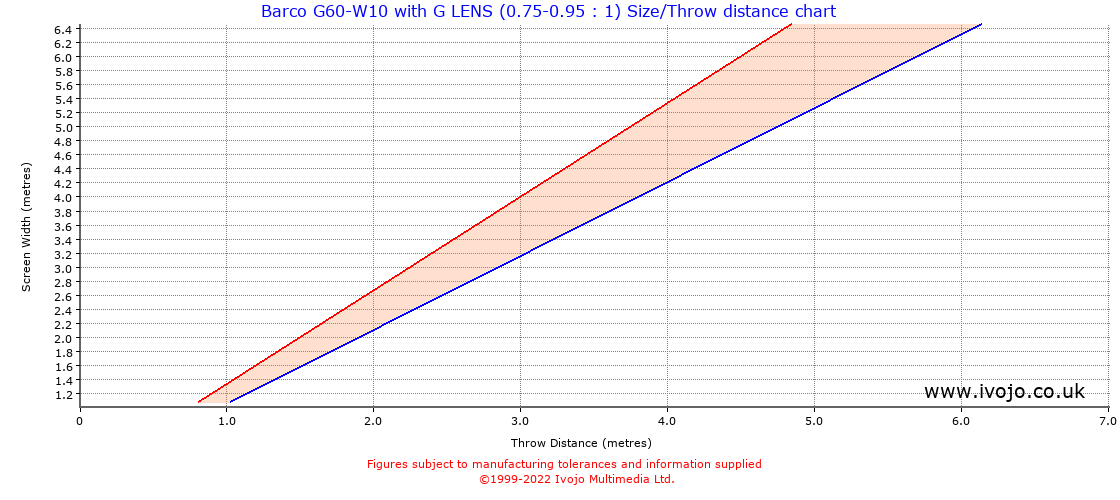

Throw Distance Table (Figures in metres)
Distance | Minimum Width | Maximum Width |
1 | 1.05 | 1.33 |
2 | 2.11 | 2.67 |
3 | 3.16 | 4.00 |
4 | 4.21 | 5.33 |
5 | 5.26 | 6.67 |
6 | 6.32 | 8.00 |
7 | 7.37 | 9.33 |
8 | 8.42 | 10.67 |
Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
