Optoma ZU500USTe

Optoma ZU500USTe 5000 ANSI Lumens WUXGA projector product image. Click to enlarge.
Optoma ZU500USTe 5000 ANSI Lumens WUXGA projector product image Optoma ZU500USTe 5000 ANSI Lumens WUXGA projector connectivity (terminals) product image Optoma ZU500USTe 5000 ANSI Lumens WUXGA projector product image Optoma ZU500USTe 5000 ANSI Lumens WUXGA projector product image Optoma ZU500USTe 5000 ANSI Lumens WUXGA projector product image

Optoma ZU500USTe Key Features

  • 5000 ANSI Lumens
  • Native Widescreen
  • WUXGA 1920*1200 Native Resolution
  • 30000 hour lamp life (typical)
  • 100000:1 Contrast Ratio
  • Ultra Short Throw
  • Native Widescreen
  • Horizontal & Vertical Keystone Correction
  • Direct Power Off
  • Can Be Installed Vertically
  • PIN Code Security
  • Warrantied for 24/7 use
  • sRGB Colour Mode
  • Monitor Out
  • Network Control
  • 5.7kg (12.6lb.)
  • Click for Optoma ZU500USTe Detailed Specifications
£2744 (£3292.80 inc. VAT)
Availability: Please Call
Throw Calculator


Size Range: 291 to 336cm
Lens Vertical
Offset		 Minimum
Throw		 Maximum
Throw		 Foot
Lamberts
Standard Lens 31cm 0.73m 0.73m 88
Click for Throw Calculator

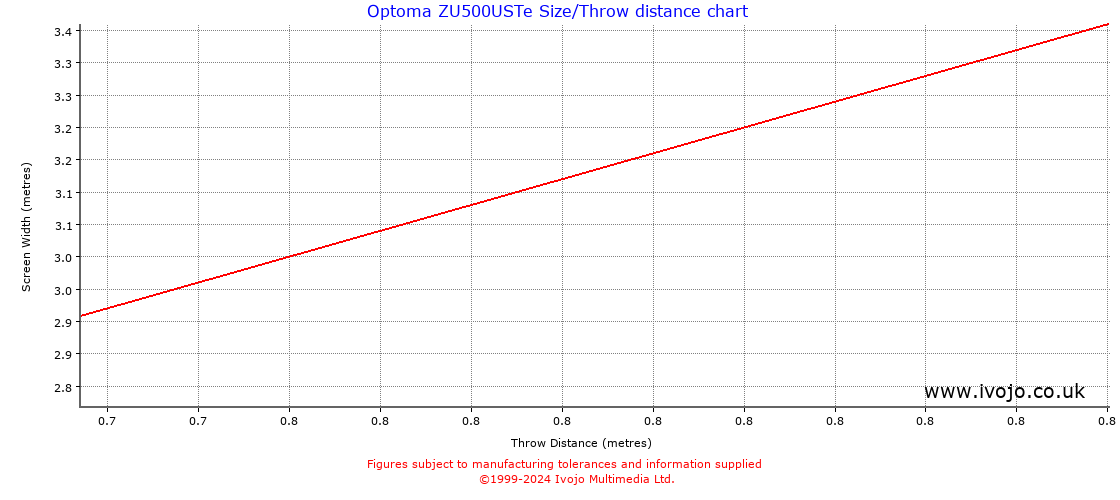

Optoma ZU500USTe Throw Chart

Optoma ZU500USTe throw distance chart
How the graph works

Along the horizontal axis is the distance in metres between the front of the projector and the projection screen. Up the vertical axis is the width of the image the projector will produce. We use width rather than diagonal as the width will remain consistent with the throw distance and zoom setting whereas the height and therefore the diagonal will vary depending on the source. For example, if you have a 4:3 aspect ratio projector and use it to watch a 16:9 aspect ratio DVD then the image will be "letterboxed", i.e. the width will remain the same but the height will be reduced.

Show Imperial

Projector Throw From Screen Size Table (16:10 aspect ratio, in metres)
Diag.WidthHeightMin. ThrowMax ThrowAreaNits
3.43 2.911.820.730.735.28²301.2
3.49 2.961.850.740.745.47²291.0
3.55 3.011.880.750.755.66²281.4
3.61 3.061.910.760.765.85²272.2
3.67 3.111.940.780.786.04²263.5
3.73 3.161.970.790.796.24²255.2
3.78 3.212.010.800.806.44²247.2
3.84 3.262.040.810.816.64²239.7
3.90 3.312.070.830.836.85²232.4
3.96 3.362.100.840.847.06²225.5

Nits are a measure of the brightness of the final image. Multiply the figure in the Nits column by the gain of your screen to obtain a true figure.

Projector lamps dim over their life spans so make allowances by multiplying the foot nits by 0.75 to get a reasonable average.If you intend to calibrate your projector then this will also affect brightness. For home cinema use in a well darkened roon, about 42-70 Nits is ideal. For office use, aim for at least 175.

Screen Size For Given Throw Table
Throw Min. Width Max. Width
0.73 2.91 2.91
0.73 2.91 2.91
0.74 2.97 2.97
0.76 3.04 3.04
0.78 3.10 3.10
0.79 3.17 3.17
0.81 3.23 3.23
0.82 3.30 3.30
