AV Stumpfl MonoClip 32 BMS-AV447/R10 Projector Screen

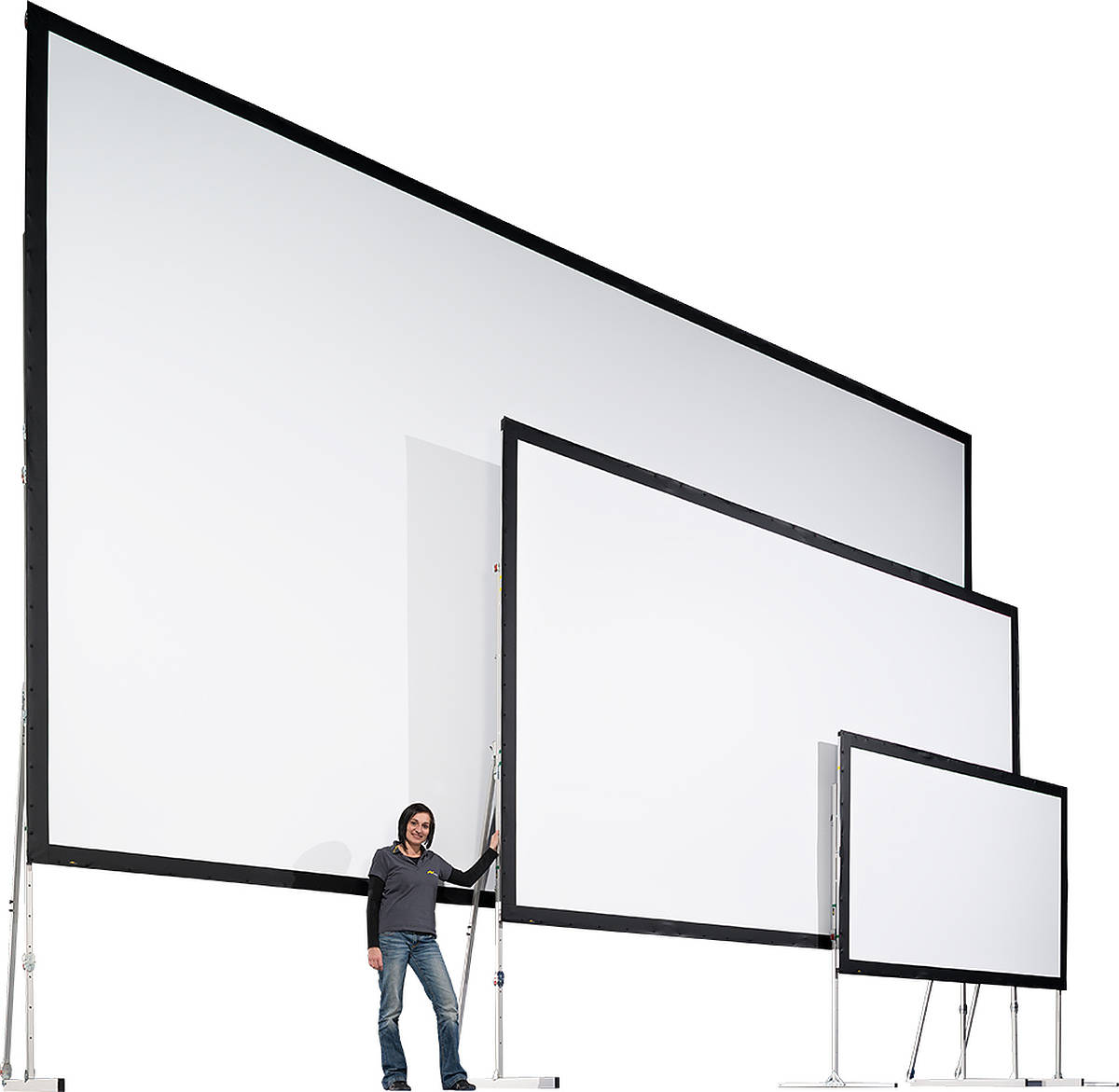

AV Stumpfl BMS-AV447/R10 210" (5.34m) 4:3 aspect ratio projection screen product image. Click to enlarge.
AV Stumpfl BMS-AV447/R10 210" (5.34m) 4:3 aspect ratio projection screen product image AV Stumpfl BMS-AV447/R10 210" (5.34m) 4:3 aspect ratio projection screen product image AV Stumpfl BMS-AV447/R10 210" (5.34m) 4:3 aspect ratio projection screen product image AV Stumpfl BMS-AV447/R10 210" (5.34m) 4:3 aspect ratio projection screen product image AV Stumpfl BMS-AV447/R10 210" (5.34m) 4:3 aspect ratio projection screen product image

Key Features

  • Professional Folding screen
  • "Quick Clip" surface mount system.
  • Height adjustable
  • Available up to 508 x 386cm
  • Optional flight case
  • Front or rear projection
  • In The Box: 32mm x 32mm (1-1/4") folding frame, T-legs, Projection Surface, Wing Screws, Soft Bag with wheels
Type: Folding
Diagonal: 210" (5.34m)
Aspect Ratio: 4:3 (1.33:1)
Viewable Area: 14' 0" x 10' 5" (427.0 x 320.0cm)
Finish: AV Stumpfl Flex White CI

Constructed from 32mm (1-1/4in.) square aluminum for increased stability in operation and lasting value over time. Stumpfl MonoClip 32 includes unique auto locking hinges for quick assembly with one touch push button release for easy dismantlement. All frames are positively attached to the legs with our unique 8mm speedy butterfly fastener. Flexible, crease free, folding front or rear projection screens are attached to the frame with patented QuickClips.

£3214 (£3856.80 inc. VAT)
Availability: 7-10 Days

AV Stumpfl BMS-AV447/R10

Select A Projector to view throw distance from the AV Stumpfl BMS-AV447/R10
Projector Min. Throw Max Throw Foot Lamberts
Please note that throw figures can vary within manufacturing tolerances

AV Stumpfl BMS-AV447/R10 Specifications

Viewable Screen Dimensions

 Metric Imperial
Width 4270mm 168.1"
Height 3200mm 126.0"
Diagonal 5336mm 210.1"
Area 13.66m² 147.08'

Overall Material Surface Dimensions
Width 4470mm 176.0"
Height 3400mm 133.9"
Diagonal 5616mm 221.1"
Top Border Size 100mm 3.94"
Bottom Border 100mm 3.94"
Left & Right Border Size 100mm 3.94"
Area 15.20m² 163.59'

Surface Specifications
Surface Finish AV Stumpfl Flex White CI
Gain 1.02
Viewing Angle 100°
Foot Lamberts / ANSI Lumen 6.94 / 1000
cd/m2 (nits) / ANSI Lumen 23.76 / 1000

Additional Information

Weight Not Quoted
Suggested Max. Viewing Distance 12.8m for fine detail
19.2m for text (spreadsheets etc.)
25.6m for video and images
Replacement Surfaces
BXF-AV447340A1 AV Stumpfl Flex White CI
BXF-RV447340A1 AV Stumpfl Flex Rear CI

AV Stumpfl Flex White CI Projection Surface

PVC material with matt white front surface and grey rear surface. Vivid colour reproduction and designed for resolutions up to 8K+. Flexible and foldable, flame retardent and non-aging. Clean with water or mild soap water.
AV Stumpfl Flex White CI Gain Chart

AV Stumpfl Monoblox/Vario/VarioClip 32 Accessories

ProductDescriptionPriceInc. VAT
AV Stumpfl BFZ-CASE/G/G Large grey flight case for Stumpfl Monoblox and Vario 134×38×37cm £514 £616.80

Projection screens similar to the AV Stumpfl BMS-AV447/R10

?> ?> ?> ?> ?>
Product Width
(mm)		 Height
(mm)		 Diagonal
(mm)		 Aspect
Ratio		 Gain Price Inc. VAT
AV Stumpfl Monoblox 32 BXS-AV447/R10 4270 3200 5336 1.33:1 1.02 £2347 £2816.40
AV Stumpfl Monoblox 32 Kit 14 x 10.5 KIT 4270 3200 5336 1.33:1 1.02 £3885 £4662.00
AV Stumpfl VarioClip BCV-AV447/R10 4270 3200 5336 1.33:1 1.02 £4243 £5091.60
Celexon Mobile Expert 406X305/FP 4060 3050 5078 1.33:1 1.20 £913 £1095.60
AV Stumpfl Monoblox 64 BXV-AV447/R10 4270 3200 5336 1.33:1 1.02 £4767 £5720.40
