Vogels TVW2255

2×2 ;Video Wall Trolley
55" / 176kg max

Vogels TVW2255 2×2 ;Video Wall Trolley product image

Vogels TVW2255 (7922560)

Would you like to place your 2×2 video wall in a freestanding environment? And does it also need to be mobile? Vogel's has put together a complete kit for a professional mobile video wall solution. A video wall trolley. This video wall trolley kit is suitable for 55 inch LCD displays with a maximum weight of 80 kg/display. This modular system is quick and easy to install. Combine the video wall trolley undercarriage and crossbar with the PUC 29 poles, display interface bars and display interface strips to create your perfect video wall. With the specially designed (3D) interface strips, you can easily align any screen on the X, Y and Z axis. Even after installation, the screens remain easily accessible for maintenance purposes.

Display size 55 inch
Mounting 3335 × 400 mm
Max. weight 44 kg/display
Max Load: 176.00kg.
Order Code: 7922560
See entire Vogels Video Wall Hardware Range

Ideal For

Exhibitions
Places of Worship
Trade Shows
Video conferencing

£2122 (£2546.40 inc. VAT)
Availability: In Stock

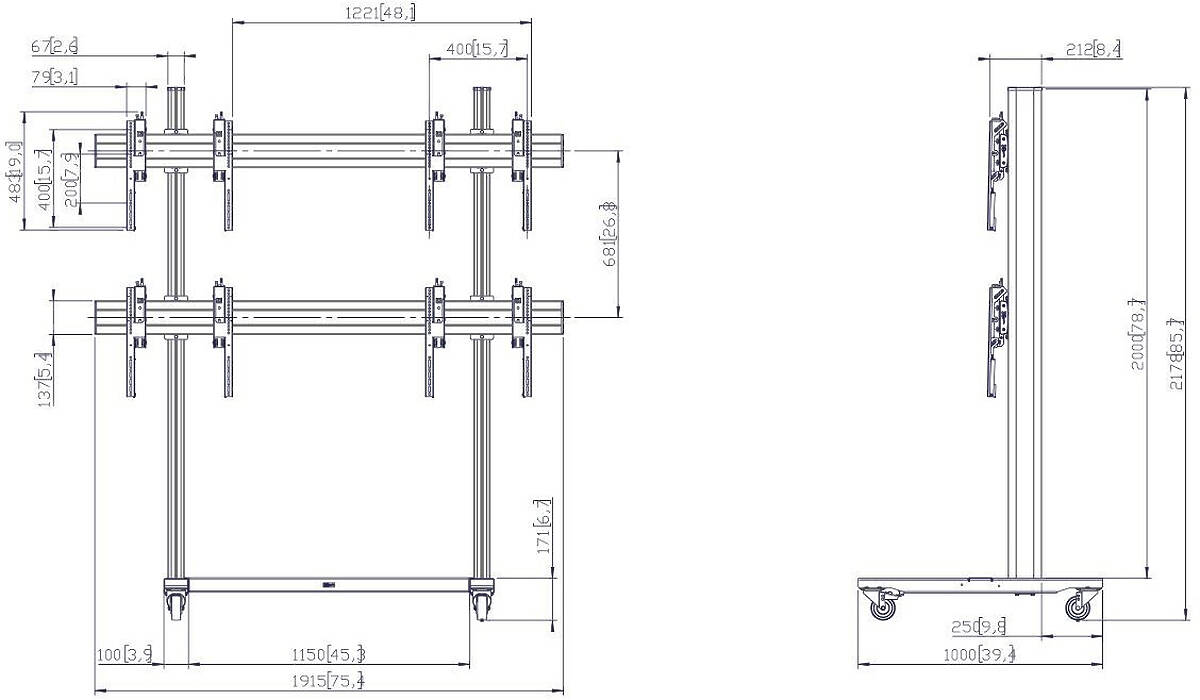

Vogels TVW2255 Specifications

Screen Size	46-55 inch
Colour	Black
Height	2178mm
Orientation	Landscape
Max. weight load	176kg
Max. vertical hole pattern	400mm

Max. horizontal hole pattern	1935mm
Pole length	2000mm
Overall Height	2171mm
Horizontal Hole Pattern	400-1935mm
Vertical Hole Pattern	200mm-400mm
Guarantee	5 years

TVW2255 Component Parts

Product Code	Description
1 × Vogels PFA9129	115㎝ Video Wall Cross Bar
2 × Vogels PFB3419B	Connect-it 1915mm Interface bar finished in Black
4 × Vogels PFS3504	Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 160kg; -3/+7°Tilt; VESA 100-400mm)
2 × Vogels PFT8920	Connect-it Video Wall Trolley Base

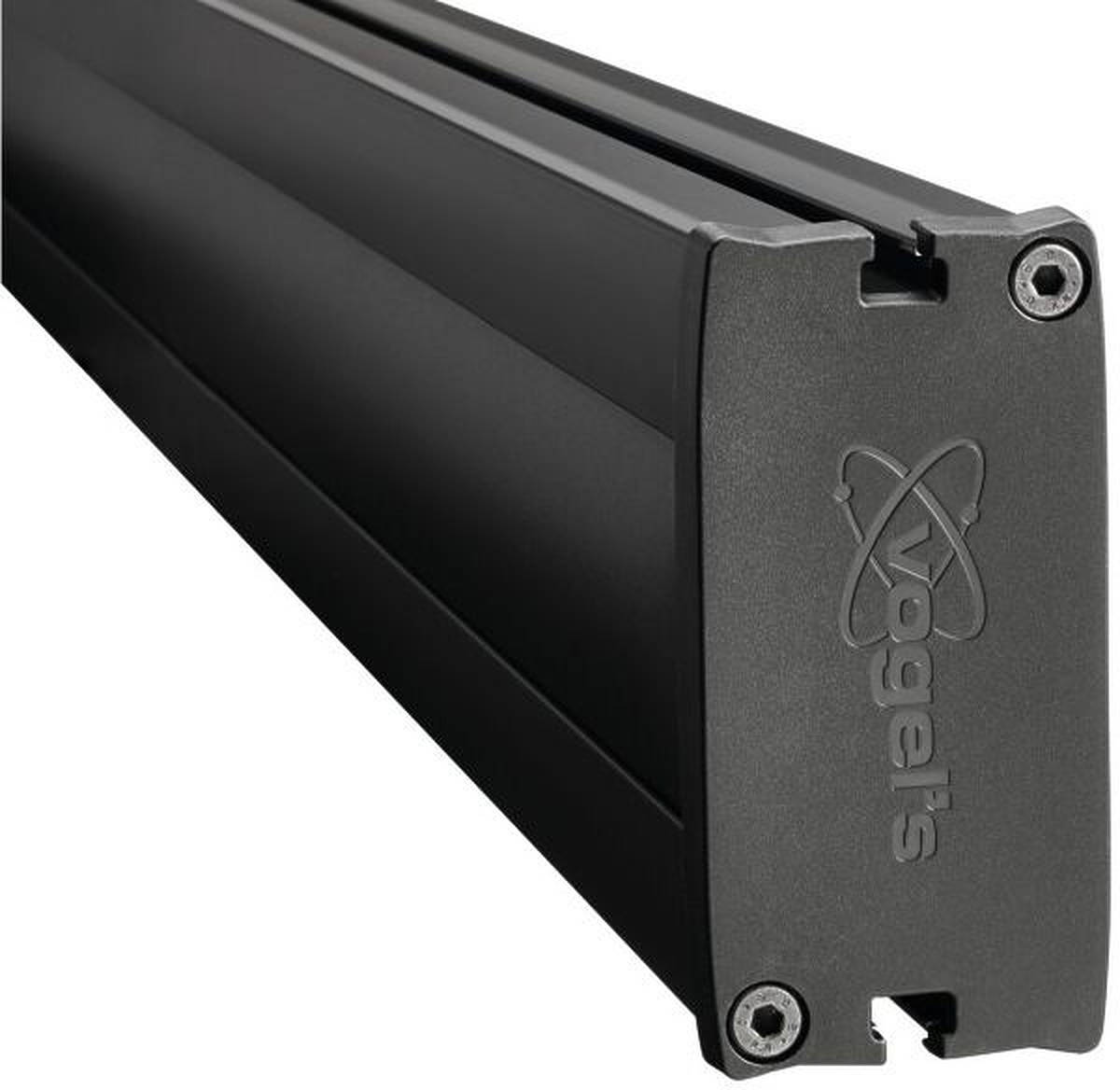

2 × Vogels PUC2920	200㎝ Connect-it Video Wall column finished in black
