Vogels PFW6850
Low Profile Turn and Tilt Universal Wall Monitor Mount
42 to 65"/ Max 40kg; VESA 100×100 to 600×400
Vogels PFW6850 (7368500)

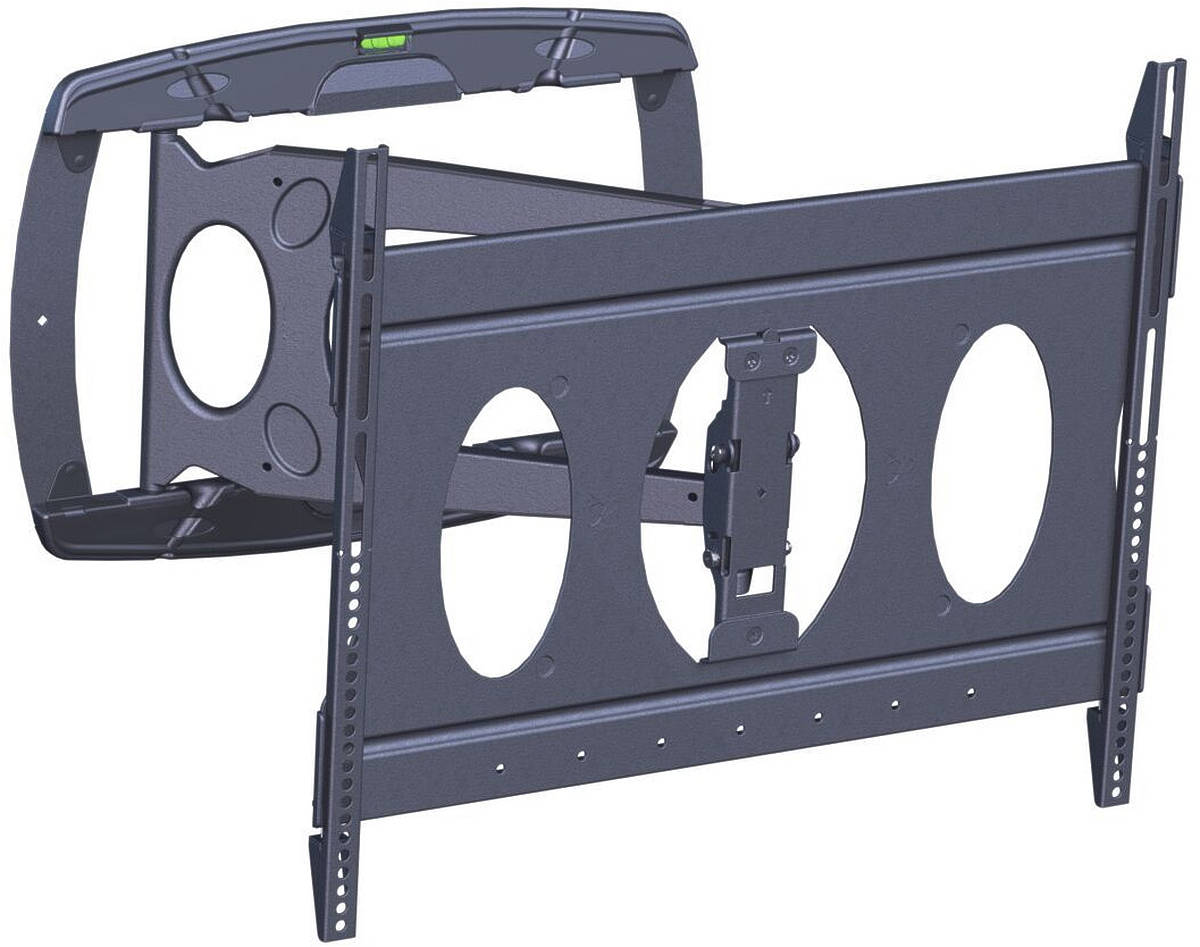

The PFW 6850 is an ultra slim wall mount for displays up to 40kg / 88 lbs. that provides two options for the swing arm placement, allowing the mount to swing out from the left or right, based on the installation requirements.

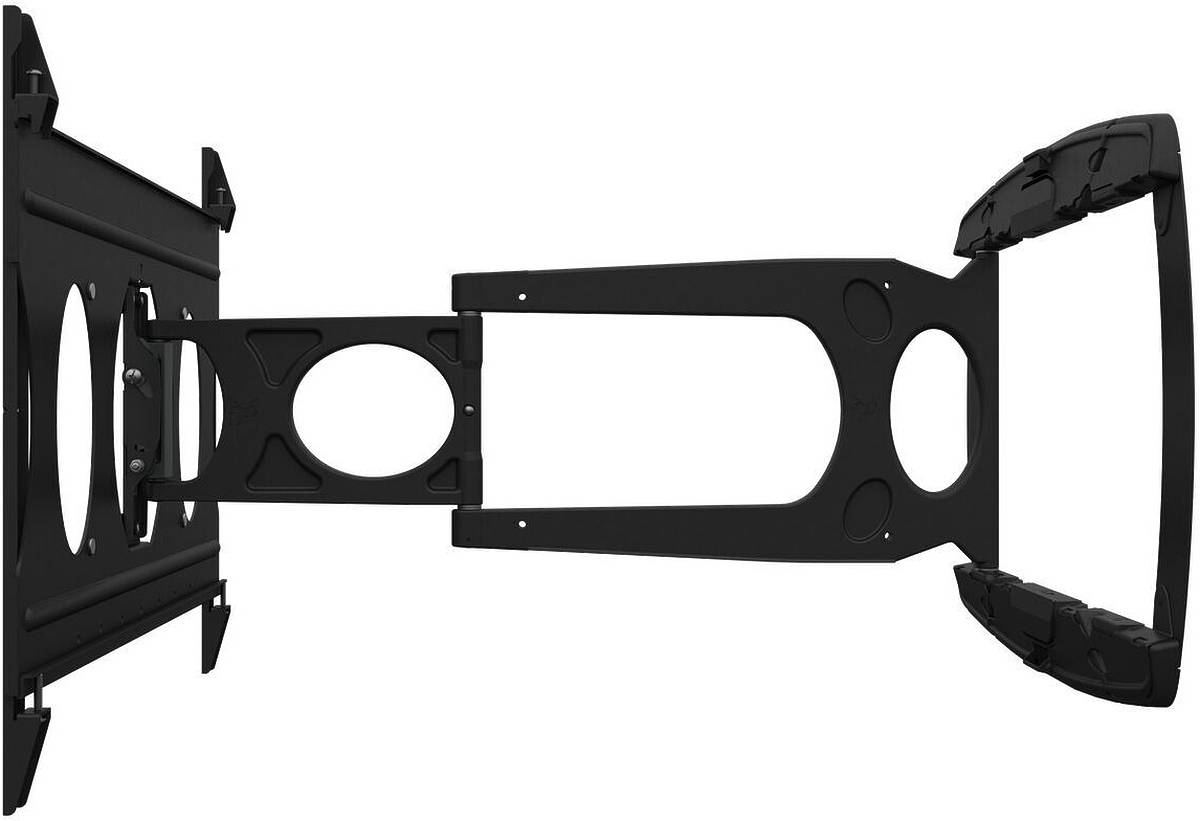

The swing-out arm extends 76 cm from the wall and provides 15° of downward tilt to achieve the desired viewing angle from virtually anywhere in a room. The lightweight aluminium mount retracts smoothly and easily to a very thin 3.8 cm from the wall. To keep power and cables protected when pulling or pushing the display, cable management channels are built into the arm.
Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.
- 5 Year Warranty
- VESA Up to 100x100 to 600×400
- Min. Depth 38mm
- Max. Depth 749mm
- Turn up to 180°
- Tilt up to 15°
- Max Load: 40.00kg.
- Order Code: 7368500
- See entire Vogels Monitor Wall Bracket Range
Vogels PFW6850 Downloads
£438 (£525.60 inc. VAT)
Availability: In Stock
Availability: In Stock
Vogels PFW6850 Specifications
| Screen Size | 42-65 inch |
| Colour | Black |
| Max. weight load | 40kg |
| Number of pivot points | 3 |
| Turn | Up to 180° |
| Tilt | Tilt up to 15° |
| Min Depth (Closed) | 38mm |
| Max Depth (Open) | 749mm |
| Orientation | Landscape |
| Lock options | No lock |
| Levelling function | Post-installation horizontal levelling |
| Number of arms | 2 |
| Horizontal Hole Pattern | 100-630mm |
| Vertical Hole Pattern | 100-526mm |
| Guarantee | 5 years |
