Vogel’s FCVW3355
3×3 Floor-to-Ceiling Video Wall Stand
47–55″ / Max 53kg per display
Vogels FCVW3355 (7933580)
Not possible to place your 3×3 video wall on the wall? Vogel’s has put together a complete kit for a professional video wall floor-to-ceiling solution. The Vogel’s FCVW3355 video wall ceiling solution kit is suitable for 9 × 55″ LCD displays weighing up to 53kg each. This modular system is quick and easy to install. Combine the floor-ceiling mounting plates with the PUC29 poles, display interface plates and display interface strips to create your perfect video wall. With the specially designed (3D) interface strips, you can easily align any screen on the X, Y and Z axis. Even after installation, the screens remain easily accessible for maintenance purposes.
Precision with ease for a seamless installation
When you don't have the possibility of installing your video wall on the wall, Vogel’s offers the solution of mounting your video wall using a floor-to-ceiling solution. This is possible with Vogel’s modular Connect-it system. Combine the floor/ceiling mounting plates with Connect-it PUC29 poles, one or more display interface plates and display interface strips to create a seamless and perfect video wall. With ease of installation in mind, Vogel’s has designed a unique, adjustable, floor-to-ceiling mounting plate. This floor-to-ceiling mounting plate makes it possible to perfectly install a PUC29 pole vertically. A function has been built into this floor-to-ceiling mounting plate, making it possible to correct any unevenness on the floor up to ±3 degrees. How easy is that? The display interface strips used when mounting video walls enjoy maximum adjustability and can be adjusted in three directions (3D). These 3D display interface strips enable you to create an absolutely perfect and seamless video wall.
Smart design makes maintenance simple
The built-in service position makes it possible to connect cables after installation of the displays. Each individual display can also be removed for maintenance or replacement. The built-in locking function prevents any horizontal movement of the displays. This video wall kit is suitable for 55 inch (1397 mm) LCD displays with a maximum weight of 45 kg (99 lb)/display.
Install your video wall quickly and easily. Choose precision with ease for a seamless end result. A solution that suits you and your customers perfectly and can be placed in any environment. An attractive design, one system for different applications, easy to maintain and both durable and versatile.
Key Features
- Wall-To-Floor Fixed Installation
- Multi Monitor
- See entire Vogels Video Wall Hardware Range
Vogels FCVW3355 Specifications
| Product Group | Vogels Video Wall Hardware |
| UPC / EAN | 8712285341601 |
| Monitor Count | 9 |
| Colour | Black |
| Screen Size | 47 – 55″ |
| Screen Orientation | Landscape |
| Max Load | 477.00kg. |
| VESA Mount Points | 100×100 – 400×400 |

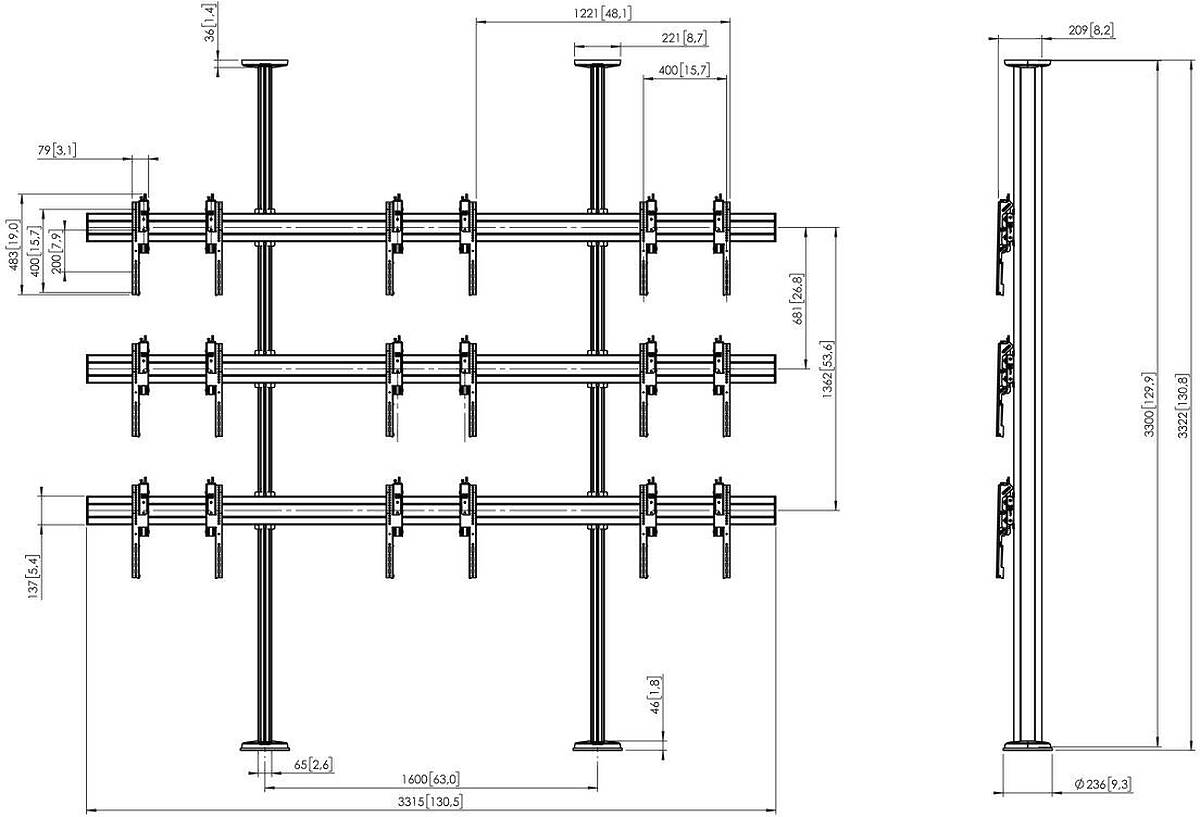

| Dimensions |
3315.0mm width 3322.0mm height 209.0mm – 230.0mm depth |
| Warranty | 5 Years |
| Video wall configuration | 3 × 3 |
Ideal For
- Conferences
- Digital Signage
- Hospitality
- Museums and Art Galleries
- Retail
- School Halls
- Video Walls
Availability: In Stock with FREE Delivery
FCVW3355 Component Parts
| Product Code | Description |
| 2 × Vogels PFA 9132 | Connect-It Floor/Ceiling Support finished in black |
| 3 × Vogels PFB 3433B | Connect-it 3315mm Interface bar finished in Black |
| 2 × Vogels PFF 7965 | Connect-it Adjustable Floor or Ceiling mounting plate |
| 9 × Vogels PFS 3504 | Vertical mounting arms for LCD/LED monitors and commercial TV's (Max. 160kg; -3/+7°Tilt; VESA 100–400mm) |
| 2 × Vogels PUC 2933 | 330㎝ Connect-it Video Wall column finished in black |
