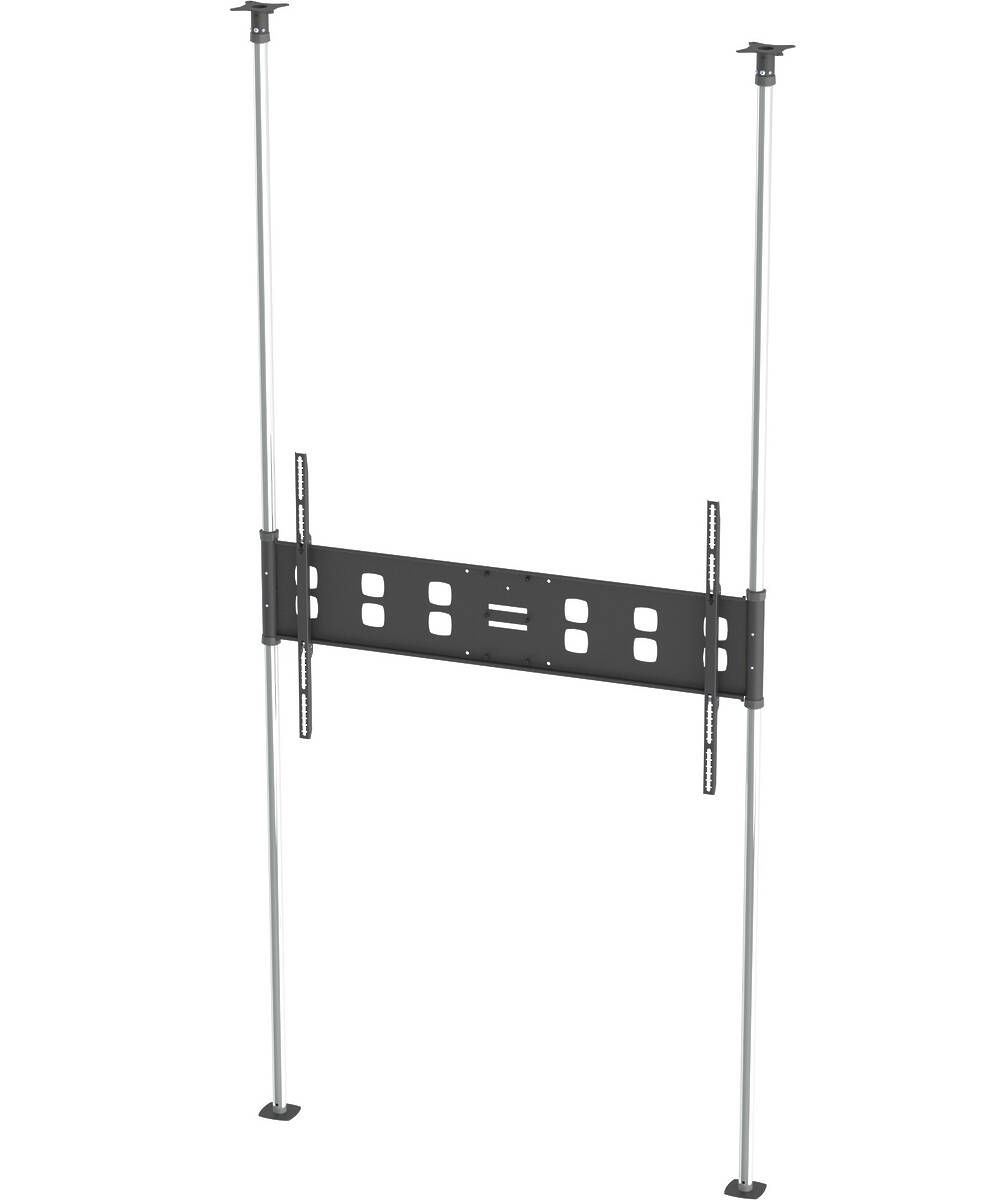

Unicol FCGSH10

Heavy Duty Goal Post Style Floor-to-Ceiling Kit
100–130″ / Max 150.00kg; VESA 1500×600; Suitable for ceilings up to 4m high

Unicol FCGSH10 Description

The Heavy Duty FCGSH10 is an ideal solution for any situation that requires a floor-to-ceiling installation. Comes with 4m columns as standard (in 2m halves), a universal mount and the components that allow you to fix it all together.

This goal-post style kit allows you to mount screens from 100–130″ / Max 150.00kg, VESA 1500×600. Cabling can be threaded through the column couplers between the mounts and then up or down through the columns to either the floor or ceiling as necessary.

This solution is suitable for a maximum weight capacity of 150kg .

Key Features

Robust, stylish screen display system
Pre-packaged solution that provides everything you need
Comes with 4m high columns as standard (2x2m)
Sturdy, reliable solution
See entire Unicol Floor to Ceiling Range

£622 (£746.40 inc. VAT)
Availability: In Stock with FREE Delivery

Unicol FCGSH10 Specifications

Product Group	Unicol Floor to Ceiling
Monitor Count	1
Colour	Sinterflex Black / Chrome
Colour Options	Custom RAL colours available at additional cost
Screen Size	100–130″
Max Load	150kg
VESA Mount Points	1500×600mm
Dimensions	1945.0mm width 4094.0mm height 160.0mm depth
Column Mount Centres	1785mm
Weight	40.50kg.
Warranty	10 Years

Ideal For

Exhibitions
Hospitality
Museums and Art Galleries
Retail
Sports Halls and Gyms
Trade Shows

Unicol FCGSH10 Downloads

Dimensions

FCGSH10 Component Parts

Product Code	Description
2 × Unicol 2000Cx2	2 × 2000mm mild steel chrome finished column (Predrilled at 35mm each end for ceiling suspension)
2 × Unicol CP1	Single Column Ceiling Plate, Max 60kg
1 × Unicol FCS10	Mount Bracket for 1785mm Goal Post Floor-to-Ceiling Installations (100–130″ / Max 150.00kg; VESA 400×400–1500×1000)
2 × Unicol FP1	135×135mm Floor-to-Ceiling Single Column Base Plate
