Unicol FCAS1

Single Screen Ceiling to Floor Monitor bracket
58–70″ / Max 60kg; VESA 200×200–600×400; Suitable for ceilings up to 4m high

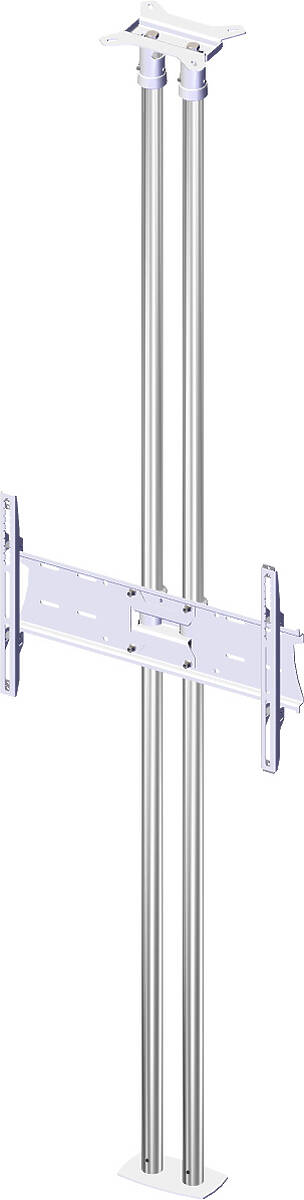

Unicol FCAS1 Single Screen Ceiling to Floor Monitor bracket product image. Click to enlarge.
Unicol FCAS1 Single Screen Ceiling to Floor Monitor bracket product image Unicol FCAS1 Single Screen Ceiling to Floor Monitor bracket finished in white product image 2000CX2 product image CP8 product image FP8 product image PS6A1 product image PZX1 product image

Unicol FCAS1

The FCAS1 twin column kit allows you to mount screens up to 70” on amount fixed from floor to ceiling. Cabling can be threaded through the column couplers between the mounts and then up or down through the columns to either the floor or ceiling as necessary. Alternatively, FCAVM column in-fill panels are also available which allow cabling to hide between the columns whilst also providing a stylish finish.

Whether you're looking to maximise space in a commercial venue or enhance display visibility in a professional environment, Unicol’s Floor-to-Ceiling Mount solutions offer reliability and a streamlined appearance.

Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400 and 600×400.

Key Features

  • Robust, stylish screen display system
  • Pre-packaged solution that provides everything you need
  • Comes with a pair of 4m (in 2m halves) columns as standard
  • Suitable for screens between 58 - 70″
  • Designed to accomodate a single monitor
  • See entire Unicol Floor to Ceiling Range

Unicol FCAS1 Specifications

Product Group Unicol Floor to Ceiling
Colour Options Custom RAL colours available at additional cost
Screen Size 58 – 70″
Screen Orientation Landscape
Max Load 60.00kg.
VESA Mount Points 200×200 – 600×400
Dimensions 765.0mm width
4115.0mm height
238.0mm depth
Weight 29.70kg.
Warranty 10 Years

Ideal For

  • Digital Signage
  • Exhibitions
  • Hospitality
  • Museums and Art Galleries
  • Retail
  • Touchscreen Applications

Unicol FCAS1 Downloads

£461 (£553.20 inc. VAT)
Availability: In Stock with FREE Delivery

FCAS1 Component Parts

Product Code Description
1 × Unicol 2000Cx2 2 × 2000mm mild steel chrome finished column (Predrilled at 35mm each end for ceiling suspension)
1 × Unicol CP8 Twin Column Ceiling Plate with 110mm Centres, Max 200kg
1 × Unicol FP8 246×143mm Twin Column Base Plate (110mm centres)
1 × Unicol PS6A1 Twin Column Floor-To-Ceiling Adaptor for Pozimount/Xactmatch Wall Mounts (150mm Column Centres;150mm Mount Centres; Max 90kg)
1 × Unicol PZX1 Pozimount Non-tilting Wall mount for Monitors/TVs (33–70″ / Max 60kg; VESA 200×200–600×400;150×150mm Mount Centres)
