Chief PFB1UB

Bolt Down Height Adjustable Stand for TV/Monitors
42″ to 75″/ Max 68kg; VESA 200×200–860×515;130–217cm to Screen Centre; +/-15° Tilt

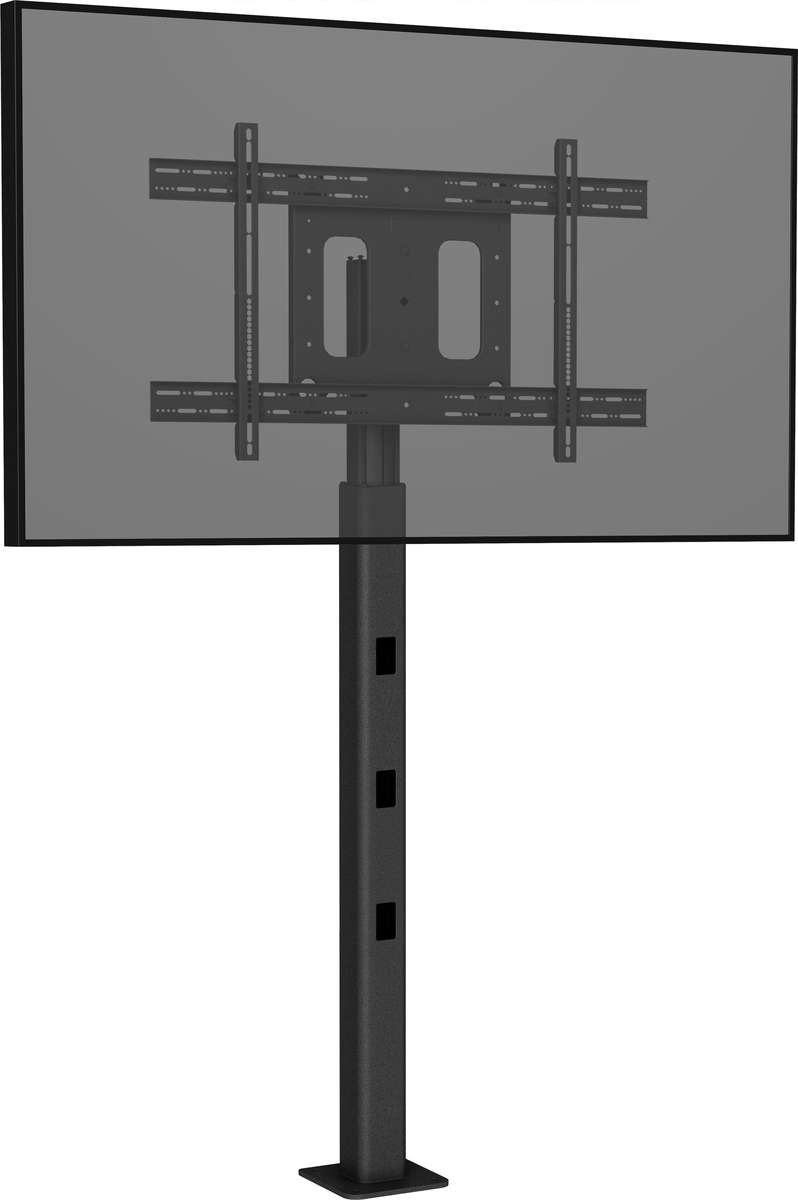

Chief PFB1UB Bolt Down Height Adjustable Stand for TV/Monitors product image. Click to enlarge.
Chief PFB1UB Bolt Down Height Adjustable Stand for TV/Monitors product image Chief PFB1UB Bolt Down Height Adjustable Stand for TV/Monitors product image Chief PFB1UB Bolt Down Height Adjustable Stand for TV/Monitors product image Chief PFB1UB Bolt Down Height Adjustable Stand for TV/Monitors product image Chief PFB1UB Bolt Down Height Adjustable Stand for TV/Monitors product image

Chief PFB1UB

This small-profile bolt-down solution for displays is great for store-front, digital signage applications. The Q-Latch mount allows for quick changes between portrait and landscape, post installation levelling roll and tilt. The centre of the display can be placed between 51.38 to 85.38” (1305 – 2169 mm) from the floor.

Designed to fit VESA measurements 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 600×400 and 800×400.

Key Features

  • Small 8 x 8” (203 x 203 mm) footprint
  • Centris Technology provides effortless, fingertip tilt of +/- 15°
  • Screen angle stays set in place until you decide to re-adjust
  • Height adjustment without tools between 51.38 to 85.38” (1305 – 2169 mm) from the floor
  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
  • Offers quick connect/disconnect with no tools necessary
  • Includes integrated security with the addition of a padlock
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)
  • Integrated cable management to hide cables out of sight
  • Supports both portrait and landscape orientations
  • Height Adjustable
  • Portrait or Landscape Monitor Orientation
  • See entire Chief Bolt Down Stands Range

Chief PFB1UB Specifications

Product Group Chief Bolt Down Stands
UPC / EAN 841872172415
Monitor Count 1
Colour Black
Screen Size 42 – 75″
Max Load 68.00kg.
VESA Mount Points 200×200 – 860×515
Screen Centre Height 1305.00 – 2169.00mm
Dimensions 413.3mm width
1539.3mm – 2385.4mm height
203.0mm depth
Bracket Tilt ±15°
Weight 36.74kg.
Warranty 5 Years
Certifications TUV Certified, UL Listed
Post-installation Leveling Roll Yes

Chief PFB1UB Downloads

£555 (£666.00 inc. VAT)
Availability: 3-5 days
