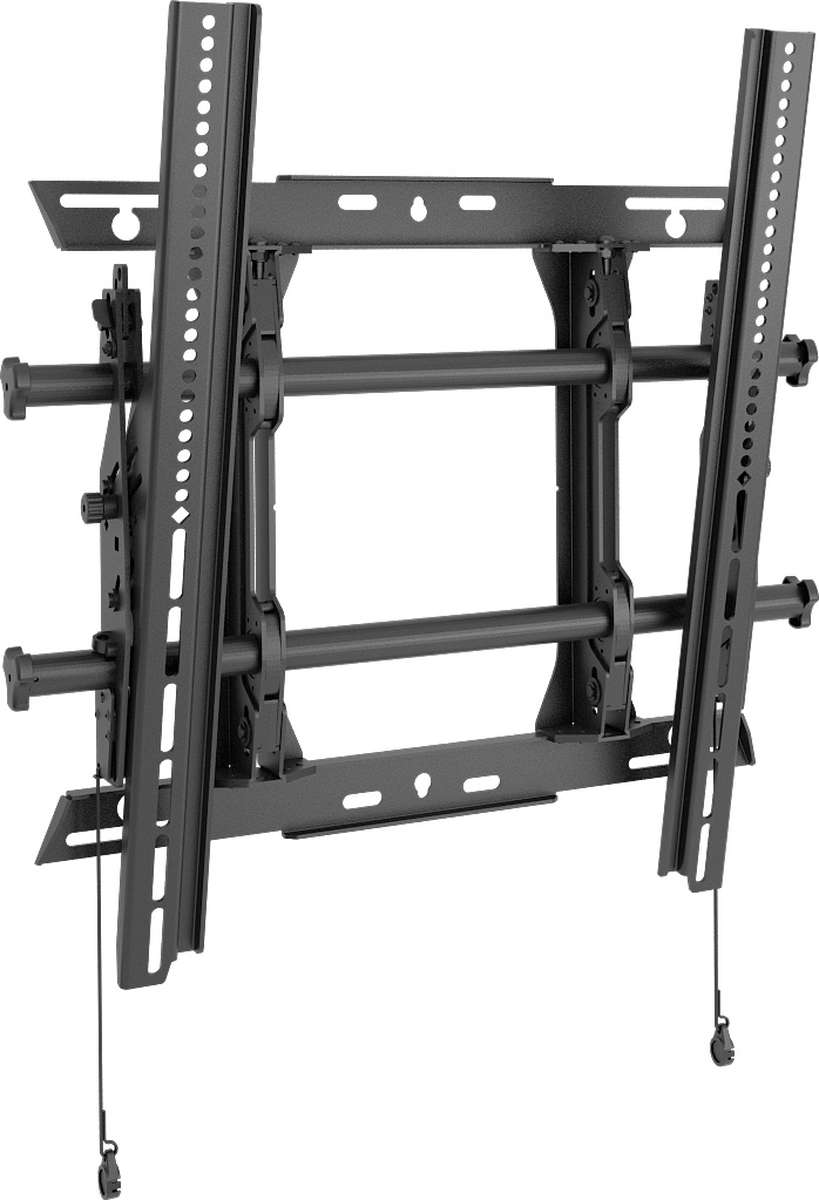

Chief MTMP1U

Medium Fusion Micro-Adjustable Portrait Tilting Wall Mount
43 to 47" / Max 90.7kg; VESA 100×100 to 571×600

Chief MTMP1U

Chief's upgraded fixed wall mounts are based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.

New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.

Installer-inspired, Fusion fixed mounts solve top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Designed to fit VESA measurements 100×100, 200×100, 200×200, 300×200, 400×200, 300×300, 500×200, 400×300, 500×300, 400×400, 500×400 and 400×600.

Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering
Centris low-profile tilt uses the centre of gravity to balance the screen while maintaining a low profile
Set screws keep the mount rigid, stable and secure throughout the life of the installation
ClickConnect offers an audible click when the screen safely engages with the mount
Built-in cable stand provides easy access under the screen
A full line of accessories can be installed with the mount and the entire unit can be adjusted together
Multiple installation options for various stud distances
Exclusive nesting spacers can be stacked to achieve any depth
Quick-Store Cords use magnets to easily store and access pull cords
Improved cable management with new end caps
Integrated Security
Ships with a custom hardware kit that can be hung from mount rails if installing in stages
Easy Open box with less waste to throw away
Max Load: 90.70kg.
See entire Chief Wall Brackets Range

Chief MTMP1U Downloads

Instruction Manual

£124 (£148.80 inc. VAT)
Availability: In Stock

Chief MTMP1U Specifications

Certifications	UL Listed, OSHPD Approved, TUV Certified
Colour	Black
Lateral Shift	10.4" (265 mm)
Manual Height Adjustment	1" (25 mm)
Minimum Depth	3.2" (81 mm)
Mounting Pattern Compatibility (universal Versions)	100 × 100 - 571 × 600 mm
Number Of Monitors	1
Overall Dimensions (H × W × D)	24.5 × 20.88 × 3.2" (622 × 530 × 81 mm)

Shipping Weight	25.25 lbs (11.45 kg)
Solution Type	Universal
Tilt	+5°, -12°
Typical Screen Sizes	43 - 47"; and stretch aspect displays with compatible mounting patterns
Wall Stud Compatibility	In 16" and single stud, weight capacity is reduced to 125 lbs (56.7 kg) for single stud mounting
Weight Capacity	200 lbs (90.7 kg)
Orientation	Portrait
