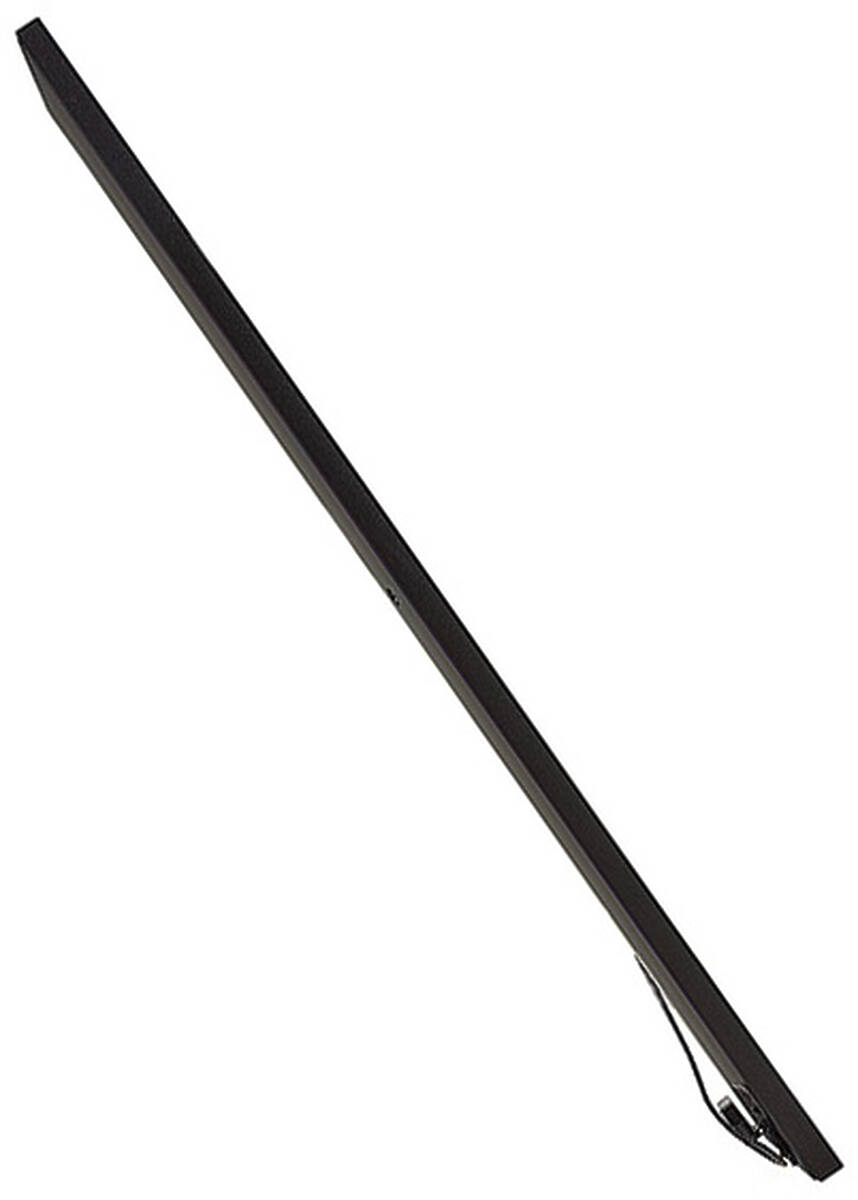

LG 65UH7N-E LED Large Format Display Monitor
Availability: In stock
LG 65UH7N-E Suggested Applications
Key Features
- 65" Diagonal IPS with Edge LED backlights Panel
- VESA 300×300 mounting points
- Designed for 24/7 use - Warranty covers use all day, every day
- Display Daisy Chaining - Connect monitor output to next monitor input to duplicate display
- Landscape/Portrait Mode - The 65UH7N-E can be installed in either standard landscape or portrait orientation
- Picture-In-Picture
- Picture-And-Picture
- LAN Control/Monitoring - The monitor can be controlled through your local area network
- Ambient Light Sensor - The display brightness will alter according to ambient light levels
- Scheduling Function - Allows the monitor to automatically switch on and off to a set schedule and (if fitted with a media player) start displaying media
- Integrated Media Player - Content can be transfered to the display via USB memory stick or network
- Built-In WiFi
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform
The UH7N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Enhanced Security Features
The UH7N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Sustainability
Recycled resins are used to manufacture back covers for digital signage product and LG plans to expand this practice to other models as well. In addition, recycled cardboard was partially used to produce packaging materials, and the printing information on the packaging materials was written by only black ink.
Digital signage product refers "UH7N-E" model
Mounting Options & Accessories
LG 65UH7N-E Summary |
|
| Manufacturers Part No. | 10442958 |
| Model | LG 65UH7N-E |
| EAN / UPC | 8806087960778 |
| Display Type | IPS with Edge LED backlights |
| Features | Designed for 24/7 use Display Daisy Chaining Landscape/Portrait Mode Picture-In-Picture Picture-And-Picture LAN Control/Monitoring Ambient Light Sensor Scheduling Function Integrated Media Player Built-In WiFi |
| Diagonal | 65" |
| Native Resolution | 3840×2160 |
| Brightness | 700cd/m2 |
| Contrast | 1,100:1 |
| Colours | 10bit(D), 1.07Billion colors |
Connectivity |
|
| HDMI | 2 |
| DisplayPort | 1 |
| USB | 2 |
| RS-232 | 2 |
General Specifications |
|
| Speakers | Yes (10W×2) |
| Warranty | 3 Years |
| Monitor Dimensions | 145 × 83 × 3cm (w×h×d) |
| Weight | 24.2kg. |
| VESA | 300×300 |
| Power Supply | AC 100-240V~, 50/60Hz |
| Consumption | 145w |
Additional Panel Specs |
|
| Refresh Rate | 60Hz |
| Dynamic CR | 1,000,000:1 |
| Colour gamut | BT709 95% |
| Viewing Angle(H x V) | 178×178 |
| Surface Treatment (Haze) | 0.28 |
| Life time | 50,000Hrs (Min.) |
| Operation Hours (Hours/Day) | 24/7 |
| Portrait / Landscape | Yes / Yes |
Connectivity Specs |
|
| HDMI IN | Yes(2), 3840x2160@60Hz, HDCP 2.2/1.4 |
| DP IN | Yes(1), 3840x2160@60Hz, HDCP2.2/1.3 |
| RS232C IN | Yes (1), 4pin Phone-jack |
| RJ45(LAN) IN | Yes (1) |
| IR IN | Yes (1) |
| USB IN | USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion) |
| DP Out | Yes(1), 3840x2160@60Hz, Input : HDMI1/2/DP/USB-C |
| Audio Out | Yes (1) |
| RS232C Out | Yes (1), 4pin Phone-jack |
| IR Out | No (Support IR daisy chain via RS232C IN/OUT) |
| Daisy Chain | Yes(Input HDMI, DP, USB C / Output DP) |
Mechanical Specs |
|
| Bezel Color | Black |
| Bezel Width | T/R/L: 8.9mm, B: 12.9mm |
| Packed Weight | 30.4 kg |
| Carton Dimensions | 1600.0×970.0×172.0mm |
| (W × H × D) | |
Internal Computer |
|
| Internal Memory (eMMC) | 16GB |
| Wi-Fi/BT (Built-in) | Yes |
| Local Key Operation | Yes |
| OS Ver. (webOS) | Yes |
| Group Manager | Yes |
| USB Plug & Play | Yes |
| Fail over | Yes |
| Booting Logo Image | Yes |
| No Signal Image | Yes |
| RS232C Sync | Yes |
| Local Network Sync | Yes |
| Screen Share | Yes |
| Additional Features | Video Tag, Play via URL, Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting (Max. 15x15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected, Smart Energy Saving, PM mode, Wake on LAN, Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom, SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Cloud, Mobile CMS |
| Connected Care | Yes |
Mechanical |
|
| Temperature Sensor | Yes |
| Auto Brightness sensor | Yes(IR) |
| Acceleration(Gyro) Sensor | Yes |
| Operation Temperature | 0 °C to 40 °C |
| Operation Humidity | 10 % to 80 % |
| Power Type | Built-In Power |
| Max. | 200W |
| IEC62087 (Typ) | 130W |
| Power off | 0.5W |
| Safety | CB / NRTL |
| EMC | FCC Class "B" / CE / KC |
| ErP / Energy Star | Yes (NewErP) / Yes |
| Tilt (Face Down) | Yes(Max 30˚ degree, 40℃ temperature) |
| IP Rating | IP5X |
Included Accessories |
|
| Accessories | Remote Controller(include battery 2ea) Power Cord QSG Regulation Book Phone to RS232C Gender USB-C Cable Cable Holder(2EA) AC Cord Holder (1EA) |
