LG 43UH7J-H LED Large Format Display Monitor

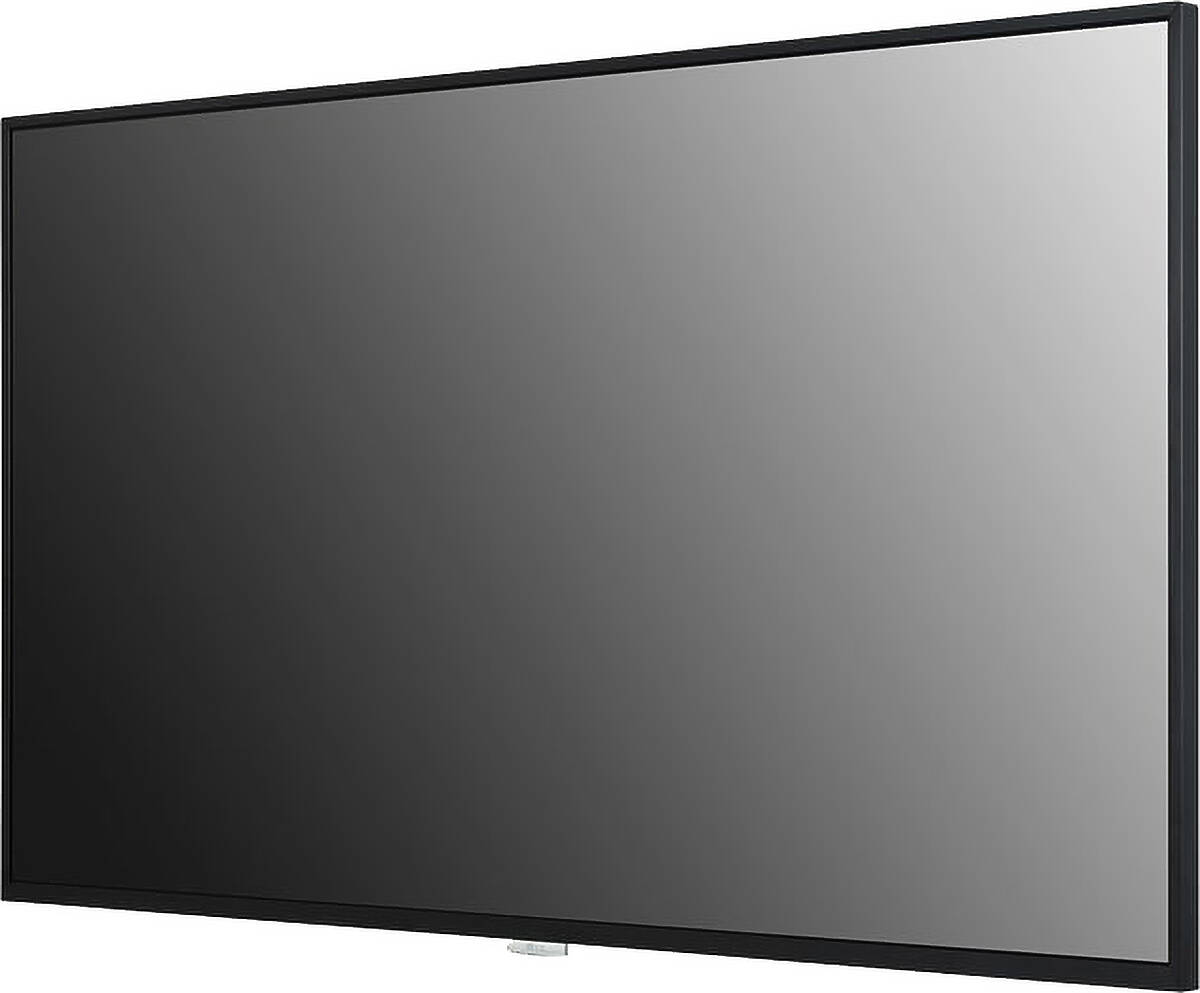

LG 43UH7J-H 43 inch Large Format Display product image. Click to enlarge.

LG 43UH7J-H 43 inch Large Format Display product image

LG 43UH7J-H 43 inch Large Format Display connectivity (terminals) product image

£829 (£994.80 inc. VAT)
Availability: Please Call

LG 43UH7J-H Suggested Applications

Boardrooms

Hospitality

Public Display

Classrooms & Training Rooms

Exhibitions

Scheduling Display

Museums and Art Galleries

Health Care / Clinics

Digital Signage

Huddle Spaces

Content Creation

Key Features

43" Diagonal IPS with Edge LED backlights Panel
VESA 200×200 mounting points
Designed for 24/7 use - Warranty covers use all day, every day
Landscape/Portrait Mode - The 43UH7J-H can be installed in either standard landscape or portrait orientation
Picture-In-Picture
Picture-And-Picture
Ambient Light Sensor - The display brightness will alter according to ambient light levels
Integrated Media Player - Content can be transfered to the display via USB memory stick or network
Built-In WiFi

High Brightness

The UH7J-H series has a brightness level of of 700 cd/m,, making it a great choice for public setting displays.

High-Performance with webOS

LG webOS platform with intuitive GUI and simple app development tools.

Conformal Coating

The UH7J-H series is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board.,

IP5x Certified Design

IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation.

Support USB-C Interface Port

The UH7J-H series supports the USB-C jack interface, allowing easy connection and use with other devices.

Compatible with AV Control System

The UH7J-H series has supported Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control, Network based control

LG 43UH7J-H Downloads

Instruction Manual

Mounting Options & Accessories

Blustream AMF41W

Unicol PA2 E

Unicol VS1000 E

Unicol AX15P

Unicol PLW1

Unicol PLX1

Unicol AVLP

Unicol AX16P

Unicol AX15T

LG 43UH7J-H Summary
Model	LG 43UH7J-H
Display Type	IPS with Edge LED backlights
Features	Designed for 24/7 use Landscape/Portrait Mode Picture-In-Picture Picture-And-Picture Ambient Light Sensor Integrated Media Player Built-In WiFi
Diagonal	43"
Native Resolution	3840×2160
Brightness	700cd/m²
Contrast	1,200:1
Colours	8bits + FRC, 1.07Billion colors
Connectivity
DVI	1
HDMI	2
DisplayPort	1
USB-C Video	1
Audio in	1
USB	2
RS-232	1
General Specifications
Speakers	YES (10W×2)
Warranty	3 Years
Monitor Dimensions	96.3 × 56.8 × 4cm (w×h×d)
Weight	11.2kg.
VESA	200×200
Power Supply	AC 100-240V~, 50/60Hz
Consumption	80w
Additional
Connectivity Details	Input:HDMI (2, HDMI1/HDMI2 : HDCP 2.2/1.4), DP (1, USB-C(DP Alternate mode) shared , HDCP2.2/1.3), DVI-D (1, HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion), Output:DP Out (1, Input : HDMI1/2/DVI/DP/USB-C/OPS), Audio Out, RS232C OUT (1, 4pin Phone-jack)
Refresh Rate	60Hz
Dynamic CR	1,000,000:1
Color gamut	BT709 95%
Viewing Angle(H x V)	178×178
Response Time	8ms (G to G)
Surface Treatment(Haze)	25%
Life time	50,000Hrs (Min.)
Operation Hours (Hours/Day)	24/7
Portrait / Landscape	Yes / Yes
Bezel Colour	Black
Bezel Width	T/R/L: 8.4mm, B: 14.4mm
Weight(Head+Stand)	11.8Kg
Packed Weight	13.7Kg
Monitor Dimensions with Stand	962.5×613.1×290.0mm (W x H x D)
Carton Dimensions	1060.0×660.0×152.0mm (W x H x D) (Box outer size)
Key features	Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
Operation Temperature	0 °C to 40 °C
Operation Humidity	10 % to 80 %
Power Type	Built-In Power
Max.	120W
BTU (British Thermal Unit)	273 BTU/Hr(Typ.), 410 BTU/Hr(Max.)
Smart Enegy Saving(~70%)	56W
DPM	0.5W
Power off	0.5W
Speaker	Yes
Safety	CB / NRTL
EMC	FCC Class "A" / CE / KC
ErP / Energy Star	Yes (NewErP) / Yes
OPS Type Compatible	Yes
SuperSign CMS	Yes
SuperSign Control / Control+	Yes / Yes
SuperSign WB	Yes
SuperSign Media Editor	Yes
Mobile CMS	Yes
Signage 365 Care	Yes
OSD	English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic
Optional	Stand(ST-653T), Wall bracket(LSW240B), OPS Kit(KT-OPSF)
Tilt(Facedown)	Yes (Max 15º degree, 30ºC temperature, humidity 50%)
IP Rating	IP5X
Included Accessories
Accessories	Remote Controller(include battery 2ea) Power Cord QSG Regulation Book Phone to RS232C Gender USB-C Cable
