tvONE MWP-4H-1Y

4:1 1080p HDMI to 4K HDMI out Multi-Window Processor

£3635 (£4362.00 inc. VAT)
Availability: 3-5 days

tvONE MWP-4H-1Y Description

CORIOview is the fastest, most intuitive 4K multi-window processor with up to 8 sources. This easy to use, plug and play solution features front panel control for preset recall or source selection. With six (6) product variants CORIOview can take in almost any input type and display it on a HDMI display up to 4K. Input types include: IP, HDMI, DVI-U and SDI.

The CORIOview multi-window processor is available in six off-the-shelf models as well as a wide variety of made to order versions.

Preset Layouts

CORIOview has 16 different preset layouts giving users the ultimate freedom for displaying any number of sources in different sizes and locations on the display.

Transitions

When selecting window layouts or switching sources; transitions, such as fade through black or eye-catching motion transitions, provide a unique visual experience.

Labels & Borders

Sources can be labeled making them easily identified. Borders can be added to labels and video windows.

Front panel control

CORIOview's front panel is minimalist in its design and is easy to use. Users can activate preset layouts, route video and audio using the front panel. The Info button, a first in the AV industry, is an instant source of information displaying current source and window assignments.

Format conversion

CORIOview offers Up/Down/Cross conversion for the full range of Analogue and digital video signals using high-quality CORIO scaling engines.

Control Options

CORIOgrapher is tvONE's intuitive control software for configuration and operation of your CORIOview. Optimized for multi-window operations and touchscreen control, CORIOgrapher functionality includes selecting preset layouts, labeling, bordering and configuring sources. Other options include a real-time API together with AMX & Crestron plug-ins.

Audio Embedding / De-embedding

Audio can be output through the display or the integrated
S/PDIF port with any input able to be routed to any output.

Ultra-Quiet Operation

CORIOview is perfect for your in-room install with its whisper quiet operation.

Mounting Options

A 1RU mounting kit is available for both single and dual units as well as a surface mount option for mounting on tables or walls. Or choose to install in your ONErack system with our customized CORIOview module.

tvONE MWP-4H-1Y Key Features

  • Advanced 4K processor with up to 8 sources
  • 1/2 RU form factor with ultra-quiet operation
  • Intuitive Front Panel Control for presets and switching
  • Mixed Input types including: IP, HDMI , DVI-U & SDI
  • HDCP Handling on HDMI Inputs & Outputs
  • Custom resolution editor for LED walls
  • Eye-catching transitions or fade through black
  • Source labeling and Borders
  • Info button to easily indicate your source selection
  • Audio breakaway from SPDIF or display
  • CORIOgrapher touch-enabled control software
  • Third party control through API or AMX & Crestron plug-ins
  • Available in six (6) variants
  • 19" rack, surface or ONErack mounting options
 MWP-4H-1Y Product Video


tvONE MWP-4H-1Y Specifications

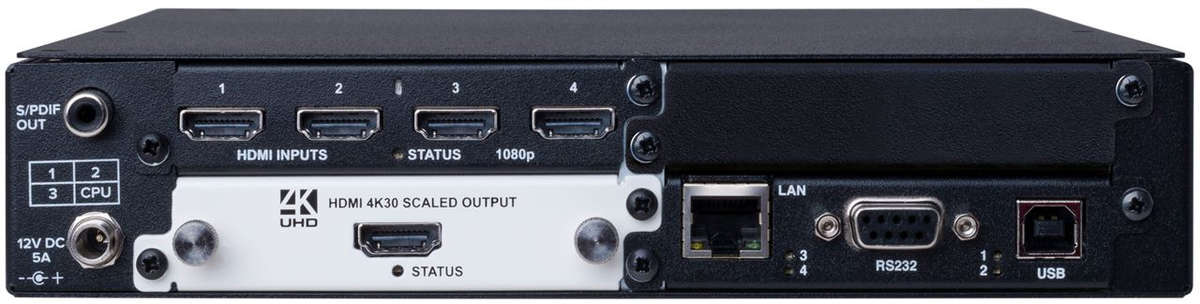

Terminals

Input 4 x HDMI (1.4 and HDCP 1.4 compatible)
Output 1 x UHD HDMI

Video Processing

Technology CORIO®3
Performance Inputs up to 4K60 & Output up to 4K30
Format conversion Up/Down/Cross Conversion
Max. number of Windows 8

Windows

Borders Configurable color & thickness
Labels Available on all windows
Transitions Available when changing sources or Presets
Preset effects Transitions Fade through black or window movement

Configuration & Control

Application CORIOgrapher software
Platform PC with Windows 10 & Windows 7 minimum
Standby Mode Faster boot up & saves power

Control Ports

RS-232 D9 Female Connector
IP Interface RJ45 Connector
USB Type B for future use

Media/Images

Interfaces USB 3.0, Internal Storage
Video Codecs H.264 (CBP, Main, High)
Video Formats mp4, .mov, .mkv, .m4v, .ts, .mts, .m2ts, .mt2
Playback Bit Rates Single stream to 100Mbs, Dual Streams to 40Mbs
File Playback Resolutions Supported Up to 3480x2160@30fps 1
Up to 1080p60@60fps Up to 2
Up to 7680 x 4320 Up to 2 (still images only)

Media Handling

External 1 x USB 3.0 interface
Supported devices Flash file systems FAT, FAT32, ext3, ext4, NTFS
Internal High speed storage up to 128GB per module
Input connectors 4 on DVI-U connector - HDMI 1.4 & HDCP 1.4 compatible
DVI-U Connector supports HDMI, DVI-I, YC, CV, VGA via optional adapters
Resolution support (4:4:4) 480i, 576i - 23.98, 24, 25, 29.97, 30Hz, 50, 59.94, 60Hz
720p (1280x720) - 50, 59.94, 60Hz
1035i (1920x1035) - 59.94, 60Hz
1080i (1920x1080) - 50, 59.94, 60Hz
1080p (1920x1080) - 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
Analog Sync TTL Level, 10KΩ, Pos or Neg
RGB Level Range 0.5-2.0 Vp-p
Scan Rate Detection Automatic
Max Horizontal Scan Rate 150kHz
Color format support Digital - RGB, YCbCr 4:4:4 & 4:2:2
Analog - RGBHV, RGBS, RGsB, YPbPr
Color depth 8 bpc (24 bit/px)
Color space support BT.601 on standard resolutions
BT.709 for 720p, 1080i, 1080p
Television Standards NTSC, PAL

Mechanical

Size (H x W x D) 1.73" x 8.54" x 9.61"
(44 x 217 x 244mm)
Weight 3.75 lbs (1.7 Kg) approximately

Regulatory Compliance

Main unit FCC, CE, RoHS, UL

Environmental

Operating Temperature 0° to +40°C (+32° to +104°F)
Operating Humidity 10% to 85%, Non-condensing
Storage Temperature -10° to +70° C (+14° to +158° F)
Storage Humidity 10% to 85%, Non-condensing
MTBF 50, 000 Hours
BTU 205 BTU/hr
Fan Noise 44dBA @ 0.5m
Power Supply External 110v-240v 50-50Hz auto-detecting
Connector Locking Power cable US, UK, EU or AU
Accessories included Quick Start Guide Printed
USB Key Documentation & Links
Power Supply Included
Warranty Limited Warranty 5 Years Parts and Labor
