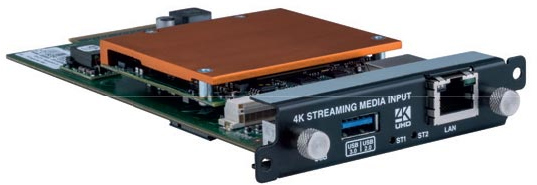

tvONE CM-AVIP-IN-1USB-1ETH
Streaming Media & 4K Playback Module for tvONE CORIOmaster products
£2480 (£2976.00 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
tvONE CM-AVIP-IN-1USB-1ETH
The Streaming Media Input Module provides CORIOmaster systems with the ability to bring 2 network streams up to 1080p 60 @ 25mbs in to just 1 slot. As well as playback of 4k UHD or 2x 1080p60 video files. The Streaming Media Input Module also supports still images with full 4K rendering. And with at least 40mbs of total bandwidth you can easily provide high quality content to your video wall and projector edge-blend.
tvONE CM-AVIP-IN-1USB-1ETH Specifications
AV over IP |
|
| Interface | 1 x GbE Ethernet Port |
| Video Decoding | H.264 (Main, High), MPEG4, H.265/HEVC1 (Main) |
| Bit Rates | Up to 25Mbs per stream |
| Colour Depth | 4:2:0, 4:2:2 |
| Supported Resolutions | Configurable to 1920x1080p60 |
| Unicast Streams | RTSP, RTMP, HTTP, MPEG-TS |
| Multicast Streams | RTSP, MPEG-TS |
| Control Interface | via CORIOgrapher v2 |
Media Handling |
|
| External | 1x USB 3.0 Interface |
| Supported devices | Flash file systems FAT, FAT32, ext3, ext4, NTFS |
| Internal | High speed storage up 128GB3 Remote File transfer supported. Maintenance through CORIOgrapher v2 |
| Remote | File transfer supported |
| Maintenance | through CORIOgrapher v2 |
Media/Images |
|
| Interfaces | USB3.0, Internal Storage, Network |
| Video Codecs | H.264 (CBP, Main, High), H.265/HEVC1 (Main) |
| Video Formats | mp4, mov, mkv, m4v, ts, mts, m2ts, mt2 |
| Playback Bit Rates | Single stream to 100Mbs, Dual Streams to 40Mbs |
| Still Image | JPEG, PNG, BMP |
| File Playback Resolutions Supported | Up to 3480x2160 @ 30fps Up to 1 |
| Up to 1080p60@60fps Up to 2 | |
| Up to 7680 x 4320 Still Images2 | |
| Playback Interface | via CORIOgrapher v2 |
tvONE CM-AVIP-IN-1USB-1ETH Compatible Products
| Product Code | Description | Price | Inc. VAT |
| tvONE C3-503 | Unpopulated tvONE CORIOmaster micro chassis (3 I/O slots) | £1750 | £2100.00 |
